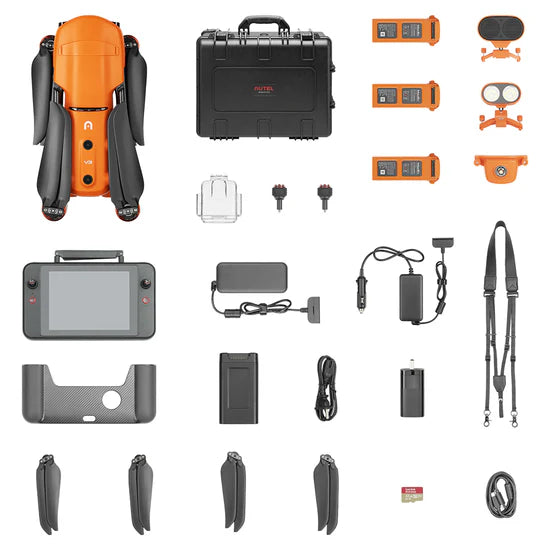

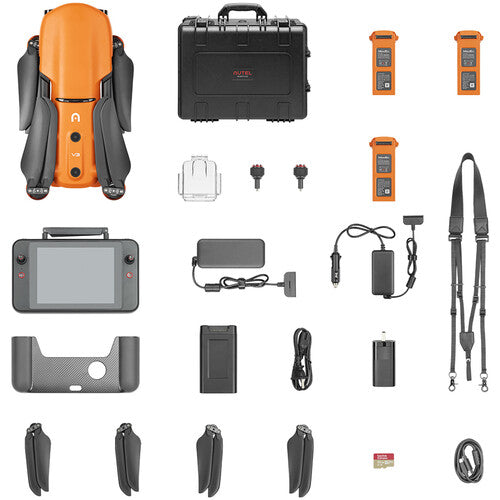

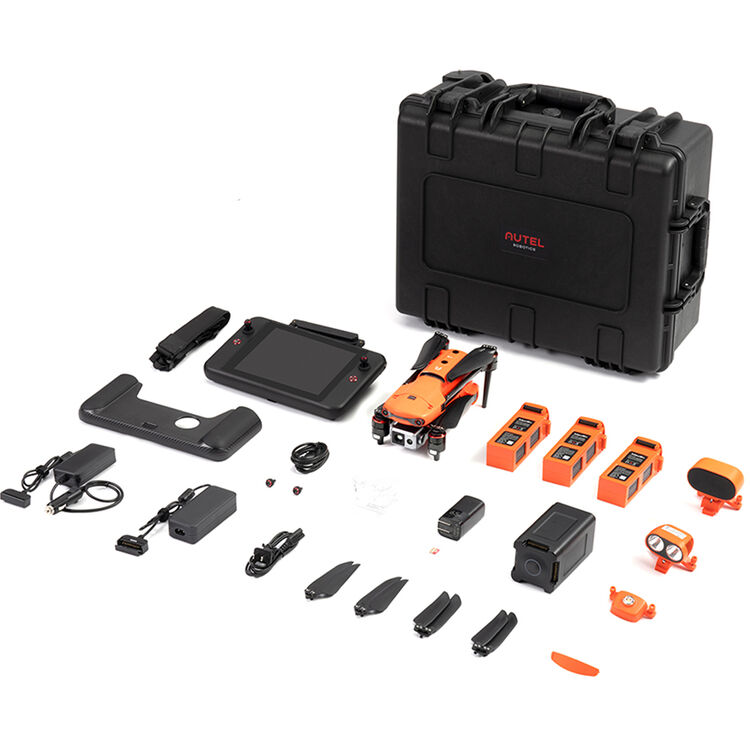

What's in the Box

Configure your drone

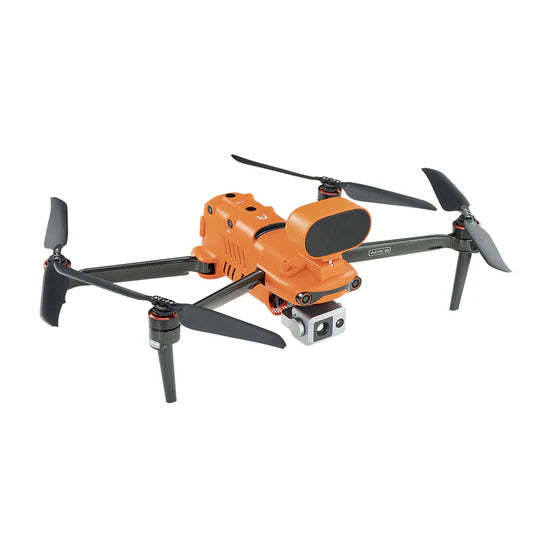

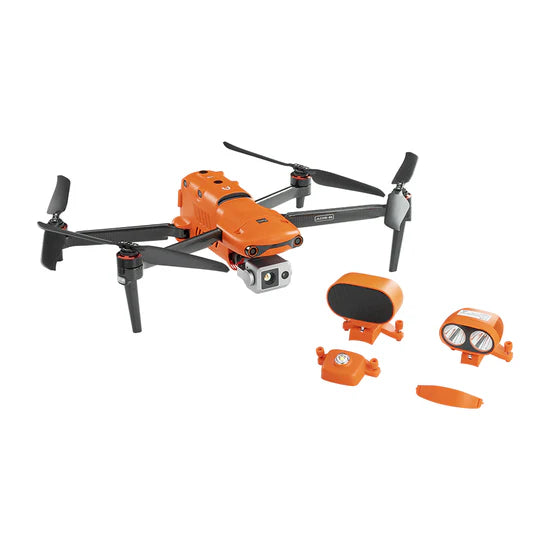

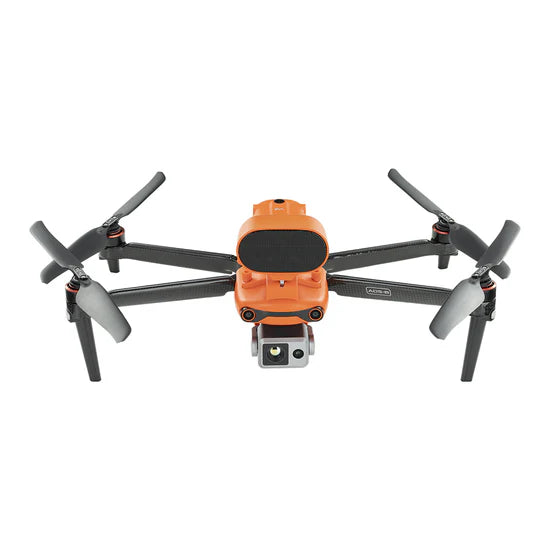

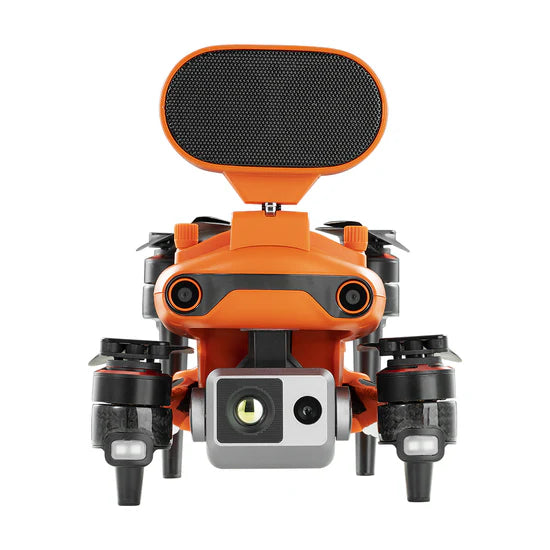

Autel Robotics EVO II Dual 640T

$5,299.99

Select a configuration

Enterprise Bundle V3

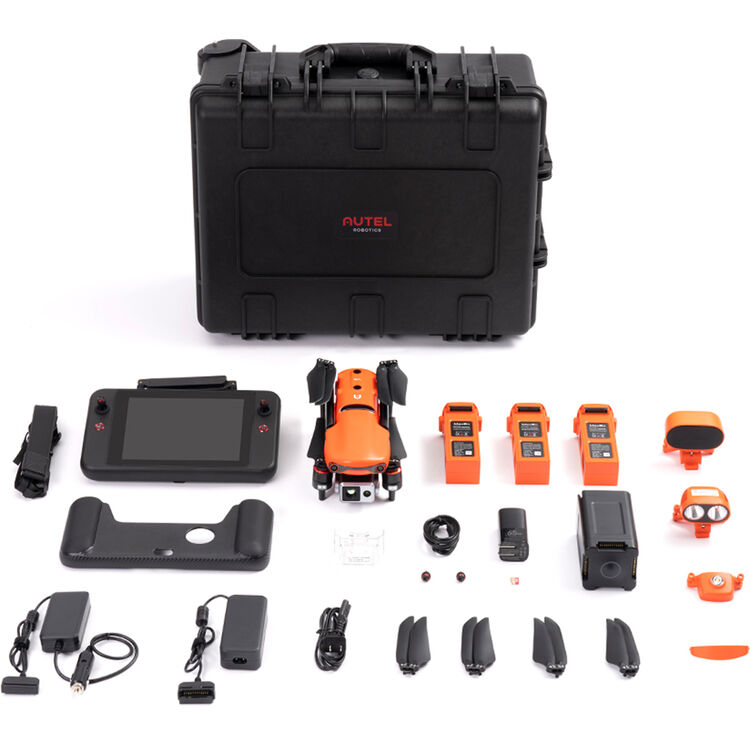

What's in the Box

Estimated Ship Window

1–2 business days

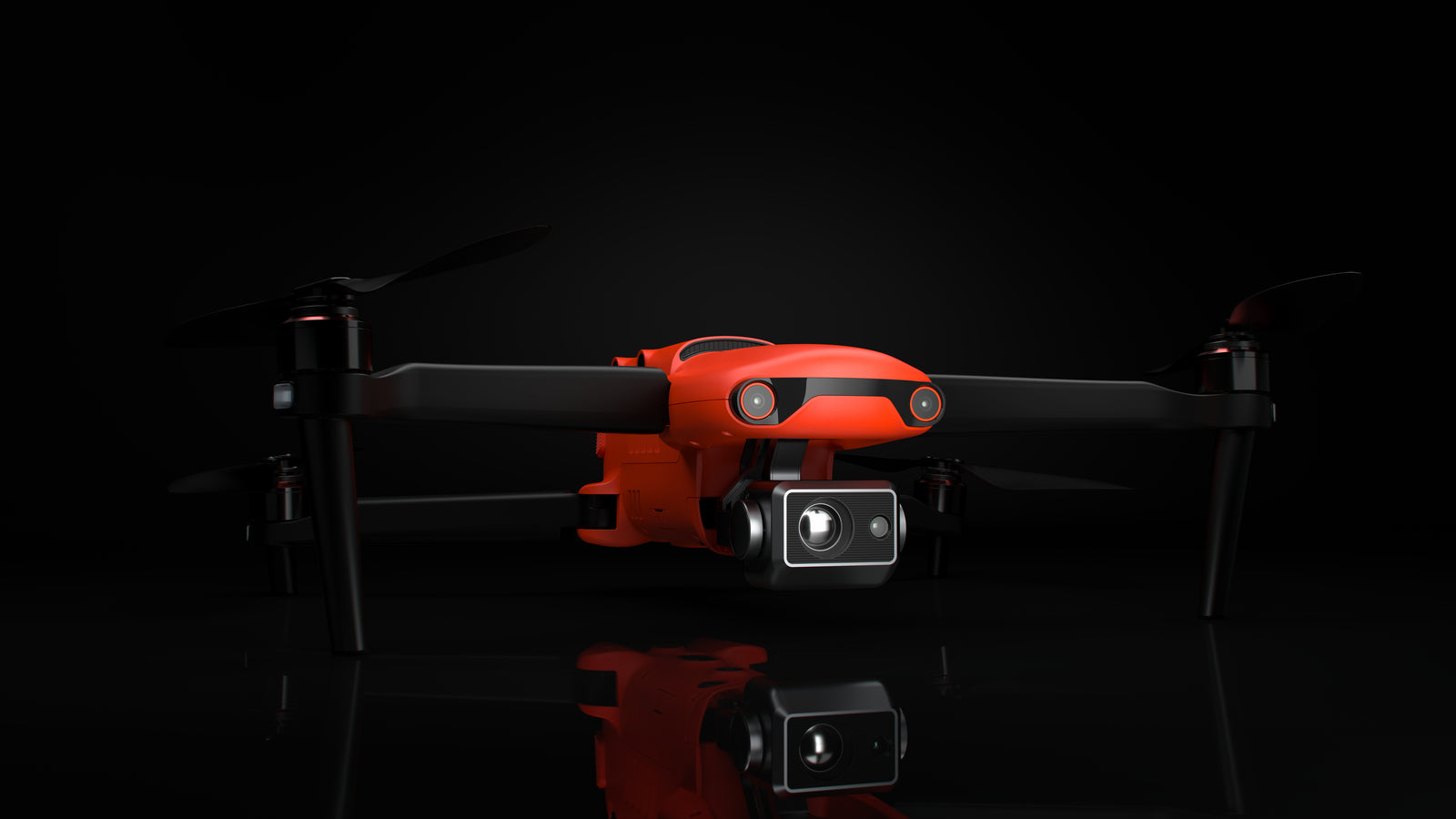

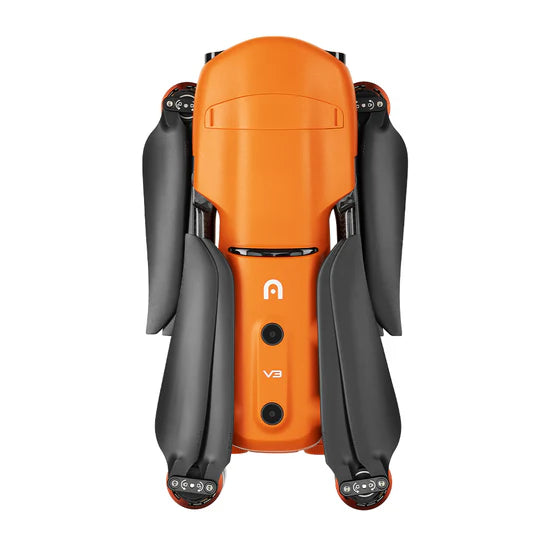

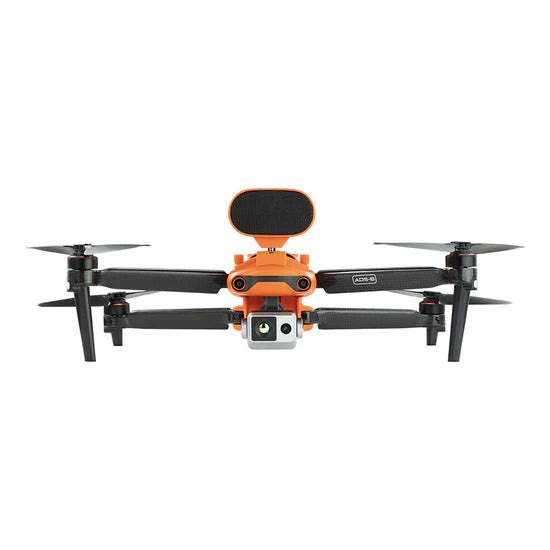

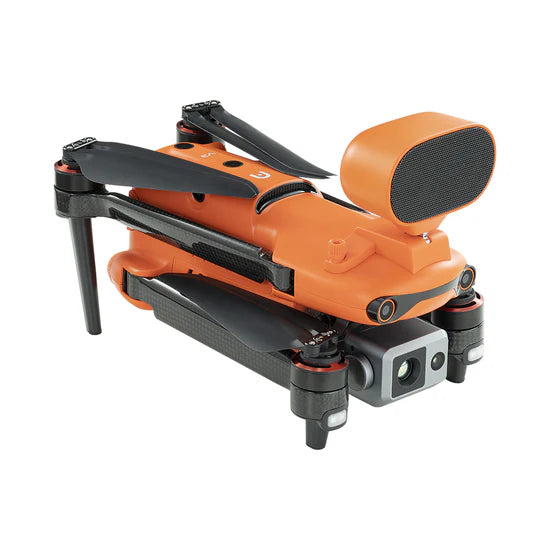

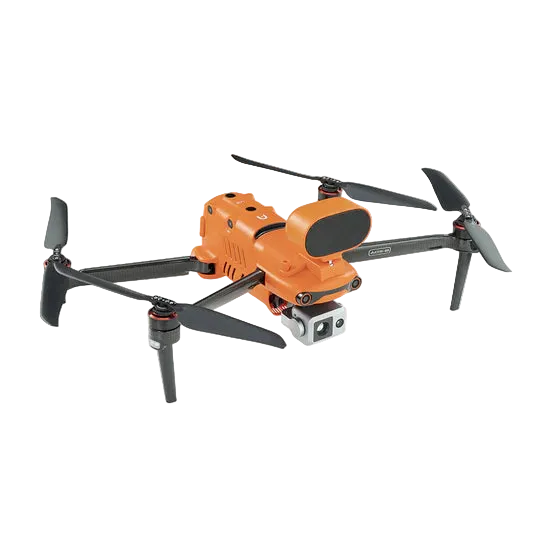

The Autel EVO II Dual 640T is a professional, mission-ready drone built for public safety, inspections, and emergency response, combining a high-resolution 640 × 512 thermal sensor with a 50 MP visual camera for detailed imagery and heat signature detection in a single flight. Its foldable design deploys in under a minute, and the intelligent battery provides up to 38–42 minutes of flight time. Equipped with SkyLink 2.0 transmission, the drone delivers a stable HD live feed up to 9 miles (FCC), while the Smart Controller V3 with a 7.9″ display ensures reliable operation even in bright sunlight. 360° obstacle avoidance powered by 19 sensors keeps the aircraft safe during complex missions, making the EVO II Dual 640T ideal for search and rescue, firefighting, law enforcement, utility inspections, and industrial operations, offering long-range performance, thermal precision, and professional-grade reliability in one compact, deployable platform.

💳 Explore Payment & Financing

Autel Robotics EVO II Dual 640T

$5,299.99

Autel

Autel Robotics EVO II Dual 640T

Built forSearch and RescueFirefightingLaw Enforcement

9.3 Miles / 15 km Max Flight Distance

38 Minutes Max Flight Time

Search and RescueFirefightingLaw Enforcement

Airtime, your kit

38 Minutes

38 Minutes per battery · rated under ideal conditions

33 Minutes

max hover

9.3 Miles / 15 km

max range

44.7 mph / 71.9 km/h

top speed

Batteries in your kit 2 × 38 Minutes

01 Power & endurance

More time flying than charging

Powered by a high-capacity intelligent flight battery, the EVO II Dual 640T delivers up to 38–42 minutes of flight time (conditions dependent). Smart battery management provides real-time status monitoring, optimized power usage, and built-in safety protections, allowing longer missions with fewer interruptions.

Auto Return-to-Home fires on a reserve charge — it comes back before it dies.

Max transmission distance

15 km

SkyLink 2.0

system

02 SkyLink 2.0 transmission

A signal that holds where you fly

Using SkyLink 2.0 transmission, the EVO II Dual 640T maintains a stable HD video feed at distances of up to 9 miles (FCC). Triple-band frequency hopping (900 MHz, 2.4 GHz, and 5.8 GHz) ensures strong anti-interference performance, while the included 7.9” Smart Controller V3 delivers clear visibility even in direct sunlight.

Lose signal? Advanced Return-to-Home retraces the flight path back to launch — it doesn't fly away.

Sensing coverage

FWD AFT LEFT RIGHT

+ UP+ DOWN Omnidirectional with Ultrasonic Enhancement

03 Obstacle avoidance

Fly with some armor.

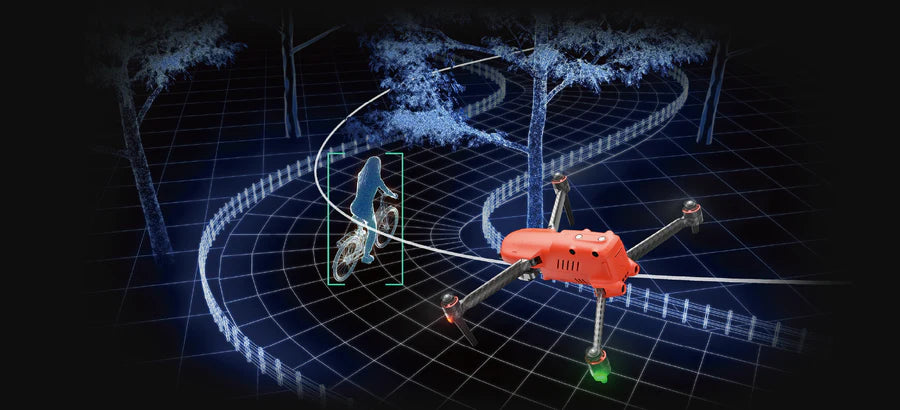

The EVO II Dual 640T features full 360-degree obstacle avoidance powered by 19 onboard sensors. This system builds a real-time 3D map of the surrounding environment, intelligently planning flight paths and helping prevent collisions during low-altitude operations and complex mission scenarios.

Even great sensors aren't a force field. USDS Care covers accidental damage and crash repairs.

TECHNICAL SPECIFICATIONS

EVO II V3 Imaging

Number of Cameras	2 (Cannot Be Used Simultaneously)
Camera System	Wide 1/1.28"-Type CMOS Sensor with 23mm-Equivalent, f/1.9 Lens (1.9° FoV) Standard Size-Unspecified CMOS Sensor with Lens Thermal Vanadium Oxide (VOX) Sensor with -4 to 1022°F / -20 to 550°C Measurement Range with Lens (33° FoV)
Zoom	16x Optical
Minimum Focus Distance	Wide 1.6' / 0.5 m
ISO Sensitivity Range	Wide Photo: 100 to 6400 Video: 100 to 64,000
Night Vision	No
Shutter Speed	Wide 1/8000 to 8 Seconds (Photo) 1/8000 to 1 Seconds (Video)
Maximum Video Resolution	Wide Up to UHD 4K at 60 fps Thermal Up to 512p at 25 fps
Still Image Support	Wide Up to 12.5 MP (DNG / JPEG) Up to 50 MP (DNG / JPEG) Up to 8 MP (DNG / JPEG) Thermal Up to 2 MP (JPEG) Up to .9 MP (JPEG) Up to .3 MP (JPEG)
Photo Modes	Auto-Exposure Bracketing (AEB), Burst Shooting, Interval, Single Shot
Media/Memory Card Slot	In Aircraft Body microSD/microSDHC/microSDXC (UHS-III) [256 GB Maximum / Class 10/U1/V10 or Faster Recommended]
Internal Storage	In Aircraft Body 8 GB In Remote/Transmitter 128 GB

EVO II V3 Gimbal

Number of Axes	Three: Pitch (Tilt) / Roll / Yaw (Pan)
Rotation Range	Controllable Range Yaw (Pan): 180° (-90 to 90°) Pitch (Tilt): 120° (-90 to 30°) Mechanical Range Yaw (Pan): 200° (-100 to 100°) Pitch (Tilt): 180° (-135 to 45°)
Follow Speed	Tilt: 300°/s
Stabilization Accuracy	±0.005°

EVO II V3 Transmission

Control Method	Included Transmitter
Transmission System	Proprietary 900 MHz / 2.4 GHz / 5.1 GHz / 5.8 GHz Power at 0.9G: 31 dBm (FCC/ISED) Power at 2.4G: 32 dBm (ISED) / 20 dBm (CE/MIC/SRRC/RCM) Power at 5.8G: 33 dBm (CE/MIC/SRRC/ISED) / 14 dBm (CE/RCM)
Maximum Operating Distance	9.3 Miles / 15 km
Transmitter I/O	1x USB-C Input (Power) 1x USB-A Output (Expansion) 1x HDMI Output (Video)
Clean Video Output	Not Specified by Manufacturer
Battery Type	Built-In Lithium-Ion Polymer (LiPo) (5800 mAh)
Operating Temperature	-4 to 104°F / -20 to 40°C
Mobile App Compatible	No
Built-In Display	7.9" (2048 x 1536) Touchscreen LCD, 2000 nits/ cd/m²

EVO II V3 Battery

Battery Chemistry	Lithium-Ion Polymer (LiPo)
Battery Capacity	7100 mAh / 82 Wh
Battery Configuration	3 S / 11.55 V
Maximum Charging Power	93 W
Operating Temperature	32 to 104°F / 0 to 40°C
Storage Temperature	14 to 86°F / -10 to 30°C
Charging Temperature	41 to 113°F / 5 to 45°C
Weight	12.9 oz / 365 g

Evo II EV3 Sensor

Sensing System

Omnidirectional with Ultrasonic Enhancement

Sensing System Capabilities

Forward
Measurement Range: 1.6 to 59.1' / 0.5 to 18 m
Max Speed: 26.8 mph / 12 m/s
Field of View: 60° (Horizontal) / 80° (Vertical)
Backward
Measurement Range: 1.6 to 52.5' / 0.5 to 16 m
Max Speed: 26.8 mph / 12 m/s
Field of View: 60° (Horizontal) / 80° (Vertical)
Lateral
Measurement Range: 1.6 to 32.8' / 0.5 to 10 m
Max Speed: 11.2 mph / 5 m/s
Field of View: 65° (Horizontal) / 50° (Vertical)
Upward
Measurement Range: 1.6 to 32.8' / 0.5 to 10 m
Max Speed: 11.2 mph / 5 m/s
Field of View: 50° (Front-to-Back) / 65° (Side-to-Side)
Downward
Measurement Range: 1.6 to 32.8' / 0.5 to 10 m
Max Speed: 11.2 mph / 5 m/s
Field of View: 80° (Front-to-Back) / 100° (Side-to-Side)

Autel Warranty

Most in-stock orders ship the same day from our California warehouse. Standard delivery is typically 2–5 business days. If an item is on backorder, we provide clear updates and estimated ship dates. Autel Products are sold as-is. US Drone Supply does not provide a manufacturer warranty on Autel products. Open-box and used products are clearly labeled, and condition details are disclosed upfront. Every unit is professionally inspected and verified to be fully functional before shipment and guaranteed operational upon arrival. For added protection, we recommend third-party coverage for peace of mind.

Optics

Optical zoom

50MP visual + 640×512 thermal

— full-frame equiv.

—

aperture

1.0×

zoom

—

Field of view

How much of the wide frame this lens keeps — narrower means more reach.

Reach

—

frames a person head-to-toe

At that distance the subject fills the frame top to bottom — the drone can hang back this far and still frame the shot.

Flight specifications

quick look

Max Speed

44.7 mph / 71.9 km/h

Max Ascent

17.9 mph / 28.8 km/h

Max Descent

8.9 mph / 14.3 km/h

Service Ceiling

22966 ft / 4.35 mi

Max Flight Distance

9.3 Miles / 15 km

Max Flight Time

38 Minutes

Max Hover Time

33 Minutes

Wind Resistance

26.8 mph / 43.2 km/h

Weight

LightHeavy

2.5 lb / 1150 g (Takeoff)

Remote ID

Yes

Equipped
