Capture the Unseen

The Freefly Wave is an ultra-compact high-speed camera built to reveal details invisible to the naked eye. Featuring a Super 35 global shutter sensor and continuous SSD recording, Wave delivers stunning slow-motion footage without the limitations of traditional high-speed cameras.

Capable of recording up to 422 FPS in 4K, 1,461 FPS in 2K, and an incredible 9,259 FPS at reduced resolutions, Wave captures every moment with exceptional clarity and precision.

Built for Creators, Engineers, and Innovators

Whether you're filming action sports, automotive content, visual effects, industrial testing, or scientific research, Wave combines professional imaging performance with a compact, lightweight design that can go almost anywhere.

Key Features

Continuous recording directly to onboard SSD storage
Super 35 global shutter sensor
Up to 422 FPS in 4K
Up to 1,461 FPS in 2K
Up to 9,259 FPS for specialty applications
Lightweight 716g aluminum construction
Compatible with Freefly Mōvi Pro and Alta X platforms
Fast USB-C file transfer
Flexible mounting options for ground and aerial workflows

Professional High-Speed Imaging Made Simple

Unlike traditional high-speed cameras that rely on short recording buffers and trigger timing, Wave records continuously, allowing you to focus on capturing the shot instead of setting it up.

Small enough to fit in one hand yet powerful enough for demanding professional applications, the Freefly Wave delivers world-class slow-motion performance in an incredibly versatile package.

Freefly Wave High-Speed Camera

$7,995.00

TECHNICAL SPECIFICATIONS

Freefly Wave Imaging

Specification	Condition	Value
Image Sensor
Format	-	S35
Aspect Ratio	-	4:3
Pixel Size	-	5.5μm × 5.5μm
Native Resolution	-	4096 × 3072
Active Area	-	22.53mm × 16.90mm
Shutter Type	-	Global Electronic
Native ISO	-	250
Lens Mount
Standard Lens Mount	-	Universal Mount Compatible
Removable	-	Yes
Positive Locking	-	Yes
Electronic	-	No
Recording
Media	-	Internal NVMe SSD
Media Size	-	1TB or 2TB
Format	-	Compressed RGB
Native Bit Depth	-	10-bit
Compression Ratio	Typical	5:1 to 6:1
Bit Rate	Maximum	1.00GB/s (8.00Gb/s)
Continuous Capture Time
4096 × 2176 @ 422fps	1TB SSD	19 min
4096 × 2176 @ 422fps	2TB SSD	39 min
2048 × 1088 @ 1461fps	1TB SSD	23 min
2048 × 1088 @ 1461fps	2TB SSD	45 min
Other Configurations	-	Limited Only by Media Size

Next, add content or select a page for this tab

Freefly Specs

<table>
<tr>
<th>Specification</th>
<th>Condition</th>
<th>Value</th>
</tr>

<tr>
<td>Export Formats</td>
<td>Camera-Native</td>
<td>ProRes, CineForm, H.264, PNG Sequence, JPEG Sequence</td>
</tr>

<tr>
<td>Firmware Update</td>
<td>-</td>
<td>via USB-C</td>
</tr>

<tr>
<td>Upgradeable Storage</td>
<td>-</td>
<td>Yes</td>
</tr>

<tr>
<td>Audio Recording</td>
<td>-</td>
<td>No</td>
</tr>

<tr>
<td>Autofocus</td>
<td>-</td>
<td>No</td>
</tr>

<tr>
<td>Dimensions</td>
<td>w/ E-mount</td>
<td>150mm x 97mm x 47mm</td>
</tr>

<tr>
<td>Weight</td>
<td>w/ E-mount</td>
<td>716g</td>
</tr>

<tr>
<td>Mounting Points</td>
<td>1/4-20</td>
<td>2 (1 Top, 1 Bottom)</td>
</tr>

<tr>
<td>Mounting Points</td>
<td>M3</td>
<td>8 (2 Per Side)</td>
</tr>

<tr>
<td>Operating Temperature</td>
<td>-</td>
<td>0°C to 40°C</td>
</tr>

<tr>
<td>Ingress Protection</td>
<td>-</td>
<td>IP52</td>
</tr>
</table>

Freefly Wave Battery

Specification	Condition	Value

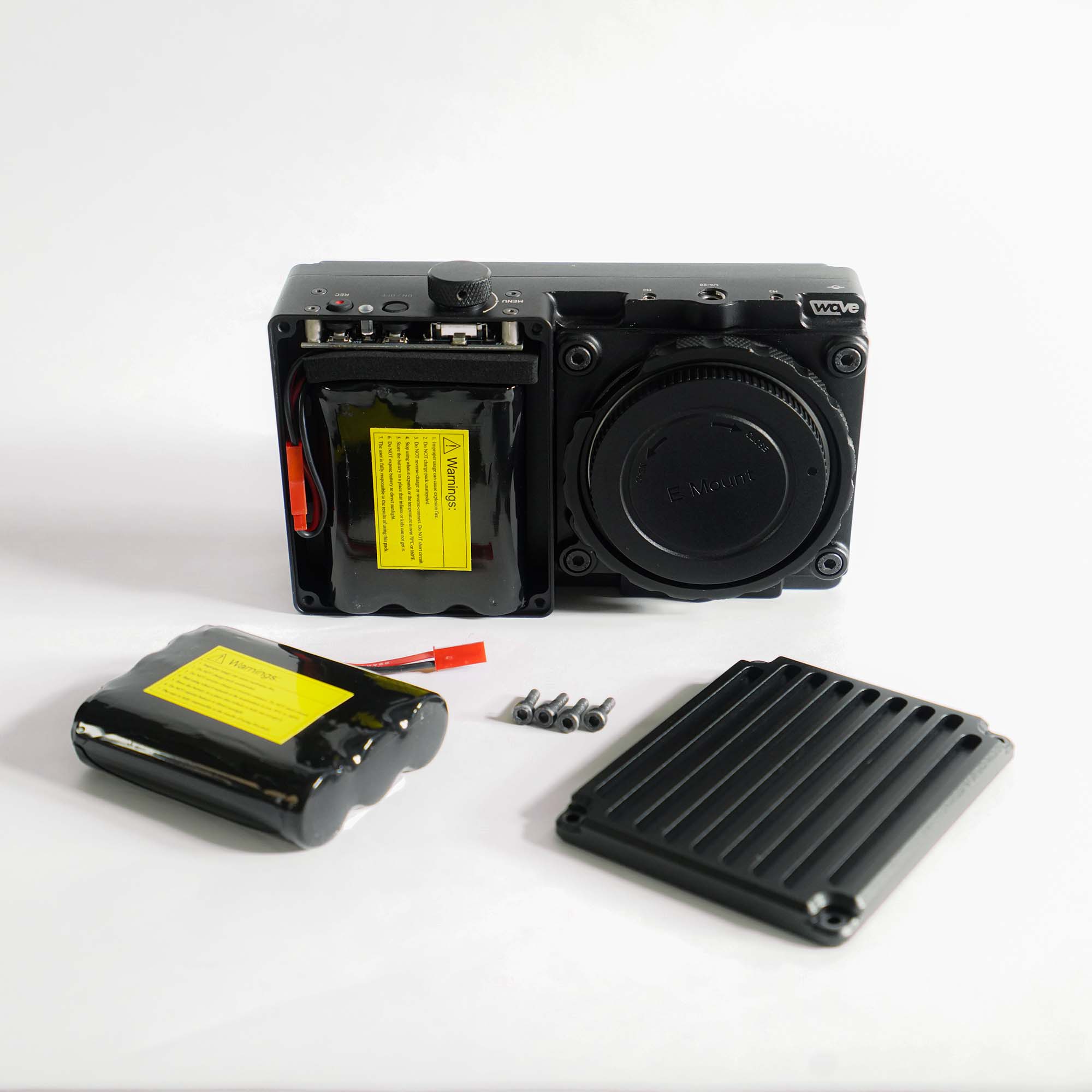

Battery	-	Internal 11.1V, 2200mAh
Run Time	Standby	90 min
Run Time	Recording (Max Rate)	60 min
Charge Time	Powered Off	90 min
DC Input Voltage	Operation	12-26V
DC Input Voltage	Charging to 100%	14-26V
Power Consumption	Standby	15W
Power Consumption	Recording (Max Rate)	19W
Power Consumption	Charging (Max)	24W

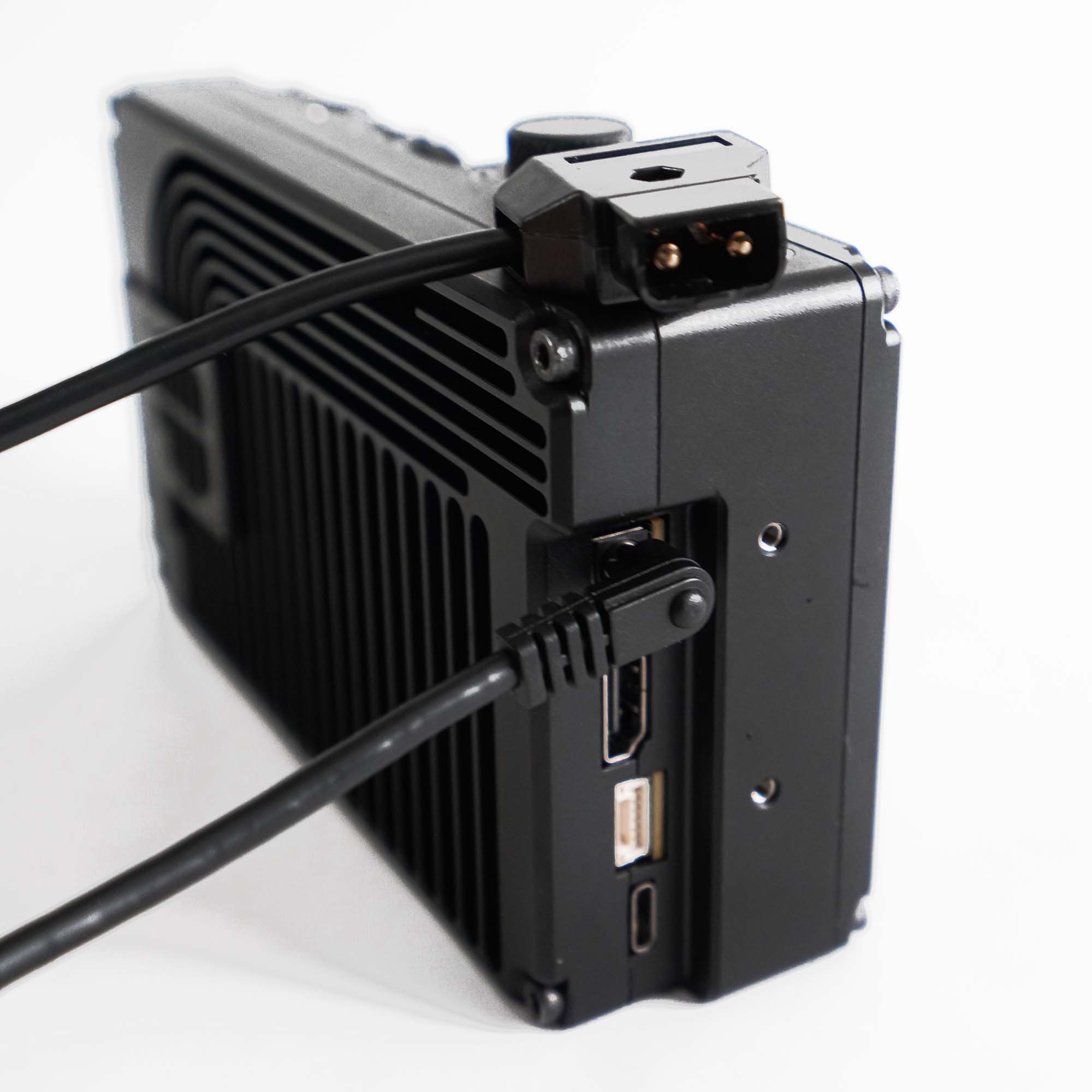

DC Input	-	Barrel Jack (5.5mm OD x 2.1mm ID)
HDMI Output	-	HDMI Type-A (Full Size), 1080p30
GPIO	-	6-Pin JST GH, Optically Isolated, Start/Stop/Sync, UART (3.3V or 5.0V) API
USB	-	USB Type-C, USB 3.2 Gen1x1, SuperSpeed 5Gb/s
Wireless	-	WiFi 802.11b/g/n, Bluetooth v4.2

Next, add content or select a page for this tab

Freefly Warranty

Most in-stock orders ship the same day from our California warehouse. Standard delivery is typically 21-30 business days. If an item is on backorder, we provide clear updates and estimated ship dates.

Freefly products include a 12-month warranty on the flying camera device and most accessories. This coverage does not include damage caused by user error, unauthorized repairs, or disassembly. Official services include technical support, repairs, replacements, and other assistance as needed.

Open-box and used products are clearly labeled, with all condition details disclosed upfront.

Camera specificationsBuilt for the shot

SPECIFICATIONS

Max Frame Rate

4K@422fps · up to 9,259fps

Max ISO

ISO 250 (native)

Onboard Storage

1 TB or 2 TB internal NVMe SSD

Recording Time

60 min continuous, 90 min standby

Native Resolution

4,096px (S35 sensor)

Weight

LightHeavy

716 g (with E-mount)

Interchangeable Lens

Yes

Yes — passive E-mount

Post-production headroom

How far can you punch in?

Digital zoom headroom

1×

4,096px (S35 sensor)

native resolution

4,096px (S35 sensor)

effective resolution

Every zoom level here is a digital crop into the same native frame — no extra glass, no moving parts, just more of the sensor's real resolution kept in reserve for post.
