Compatible with:

Sale price$43,725.00

Expected Shipping: 21 to 30 Days from Order Date

In the Box

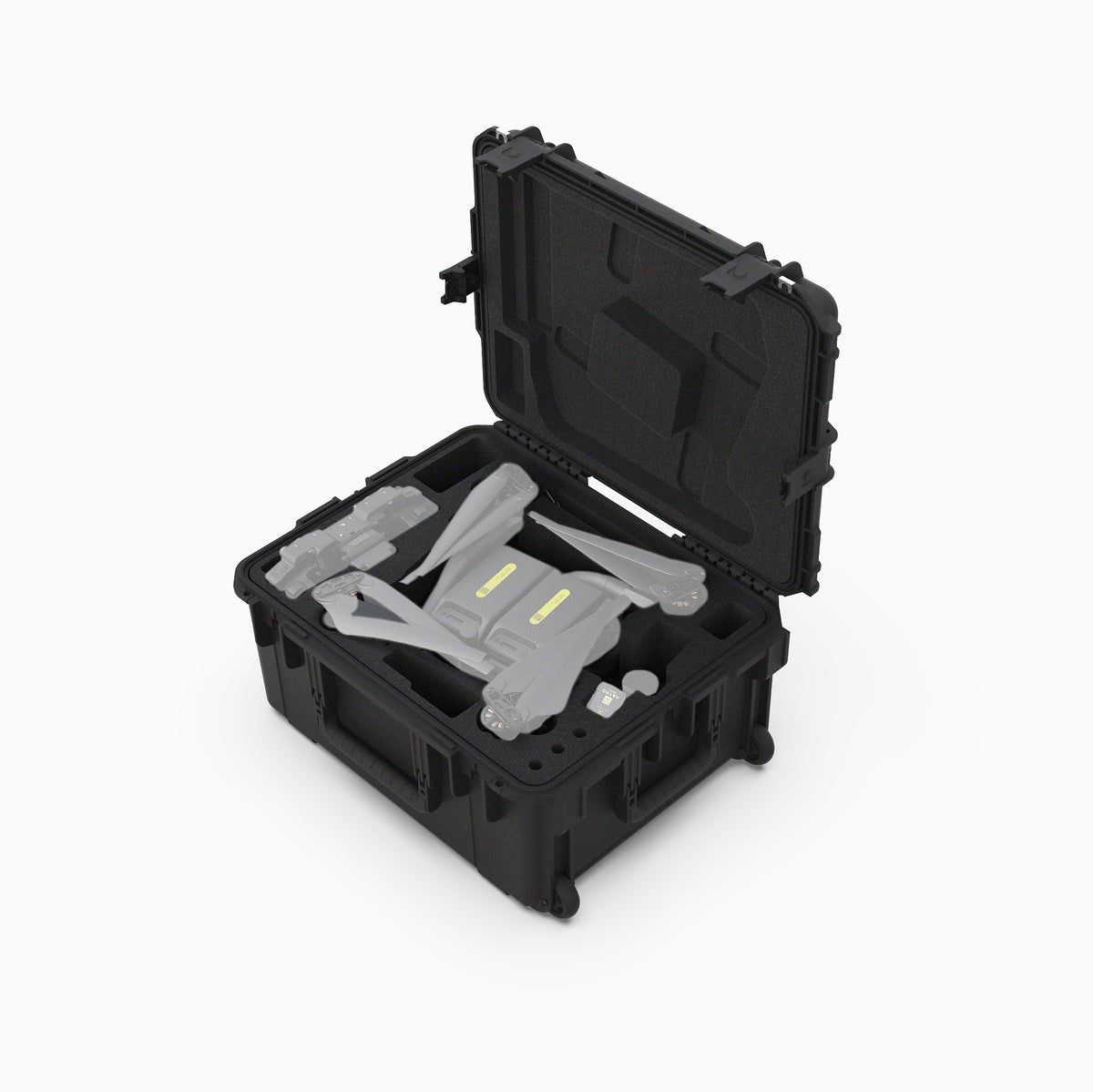

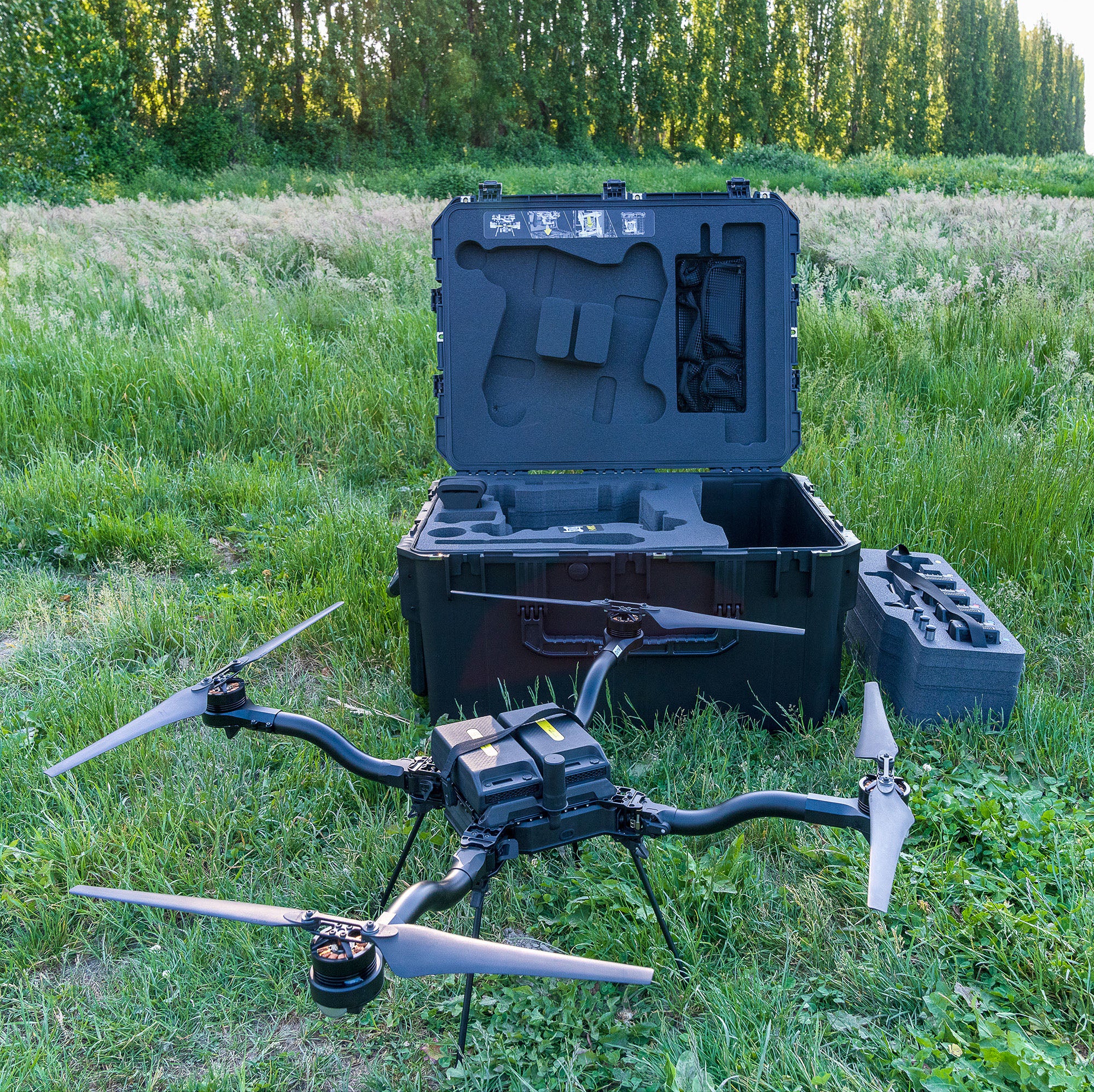

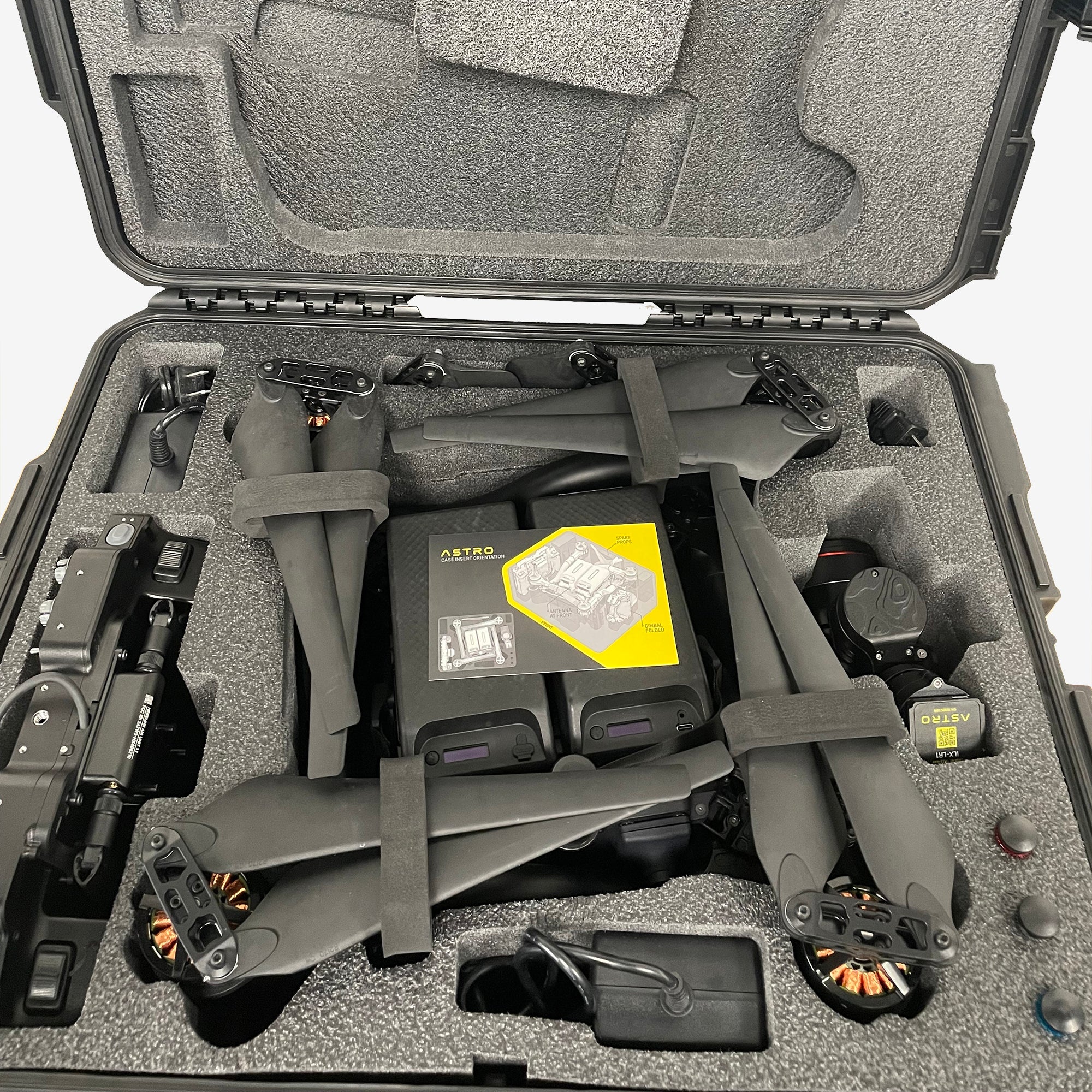

  • Qty 1 - Astro Compact Travel Case:
  • Qty 1 - Astro Max Drone (with pre-installed landing gear, props and Astro Isolator)
  • Qty 1 - LR1 Payload
  • Qty 1 - Freefly Gimbal
  • Qty 1 - Sony ILX-LR1 - 61MP camera body
  • Qty 1 - Sigma 24mm f3.5 mapping lens (p/n 404965)
  • Qty 1 - USB - C thumb drive
  • Qty 1 - Foam insert set for Astro Travel Case
  • Qty 1 each - Hex drivers, 1.5 mm, 2 mm, 2.5 mm
  • Qty 4 - Proptectors
  • Spare parts
  • Qty 1 - Extra Proptector
  • Qty 4 - Spare isolators
  • Qty 2 - Rubber hole grommet
  • Qty 1 - Pilot Pro Controller
  • Qty 1 - Samsung Active Tab 3 (pre-configured and installed into controller)
  • Qty 1 - Doodle Labs RF, NDAA and DIU Blue 2.4 GHz radio (pre-configured and installed into controller)
  • Qty 1 - Custom padded neck strap
  • Qty 6 - SL8-Air Batteries (3 pairs)
  • Qty 4 - SL8 Fast Chargers
  • Qty 1 - SL8 Travel Case
  • Qty 1 - Astro Max Replacement Props (2270 High Efficiency)( set w/ CW & CCW)
  • Qty 1 - Astro Spare Parts Kit

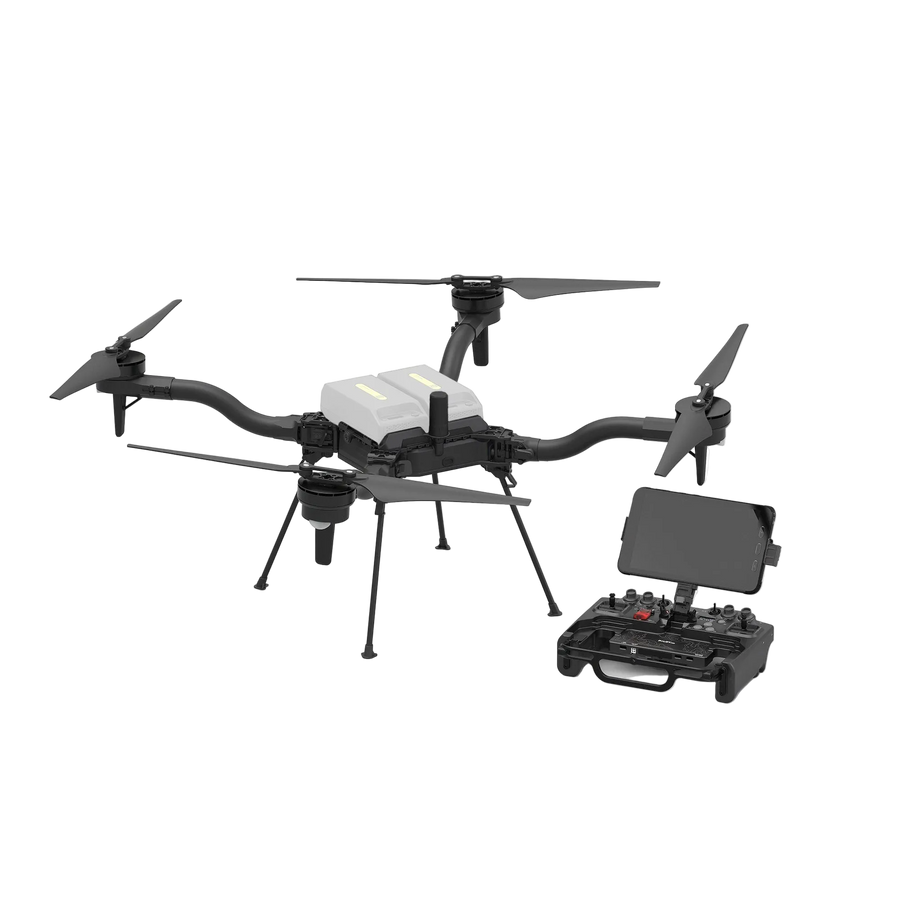

Freefly Astro Max Mapping Essentials (NDAA/Blue)

Freefly Astro Max

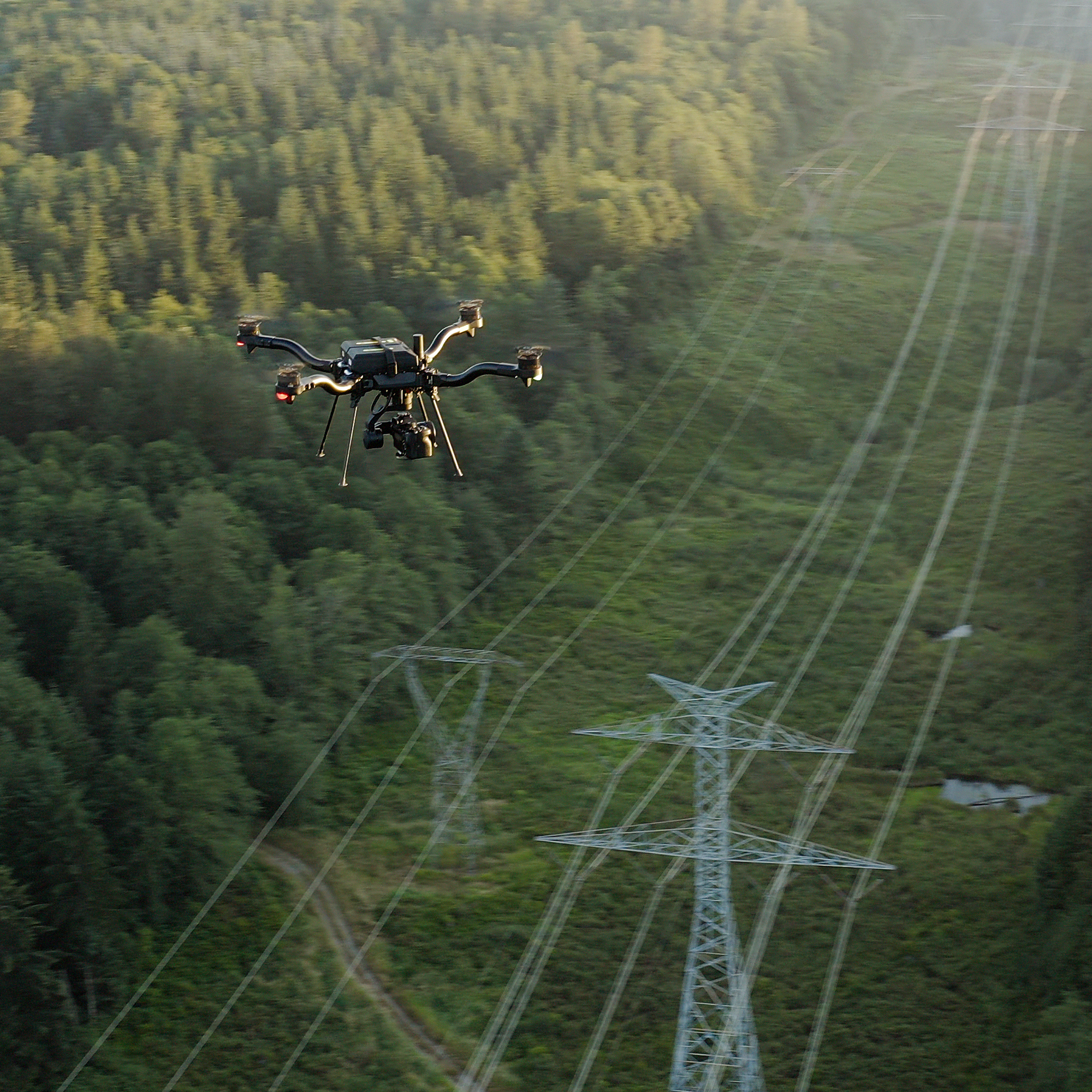

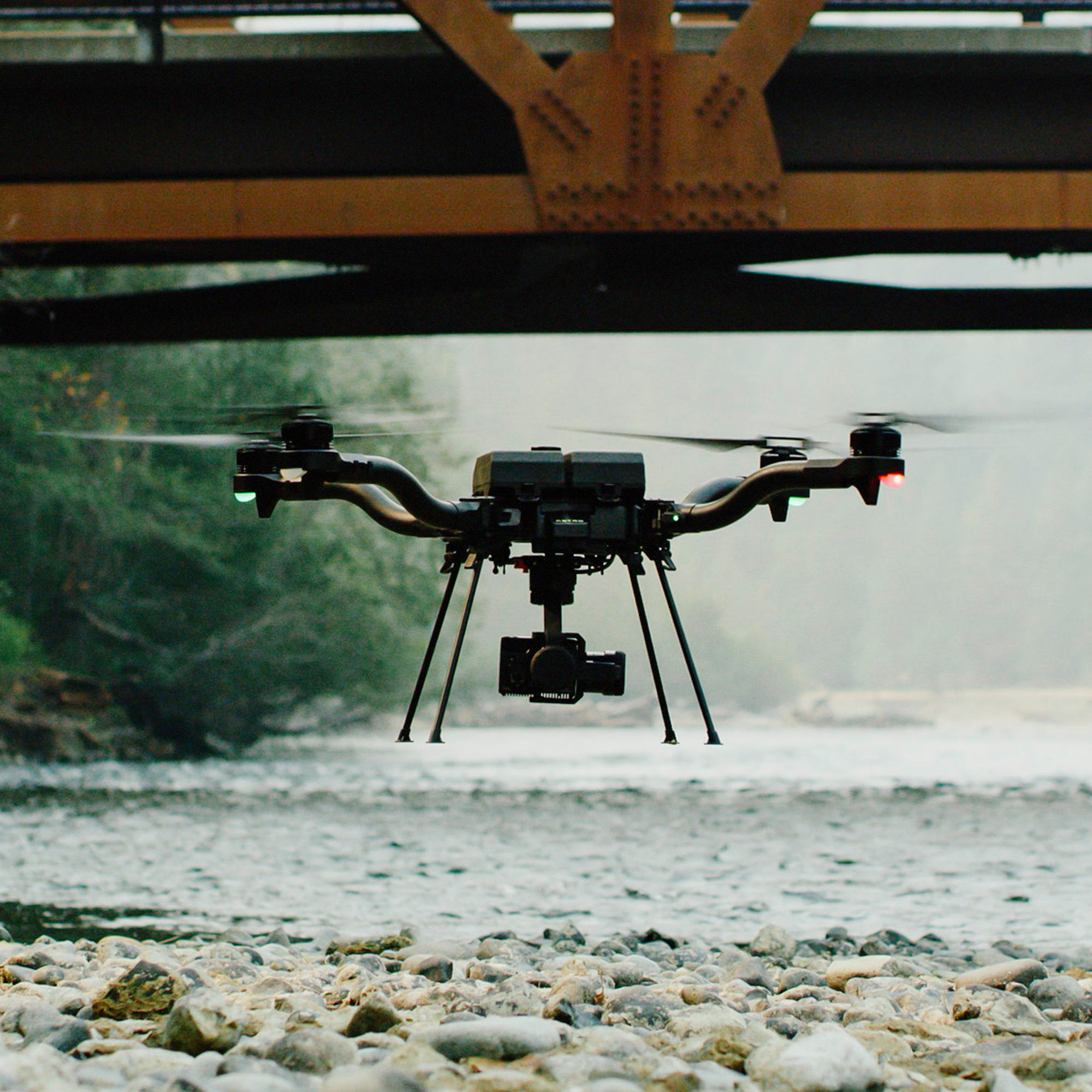

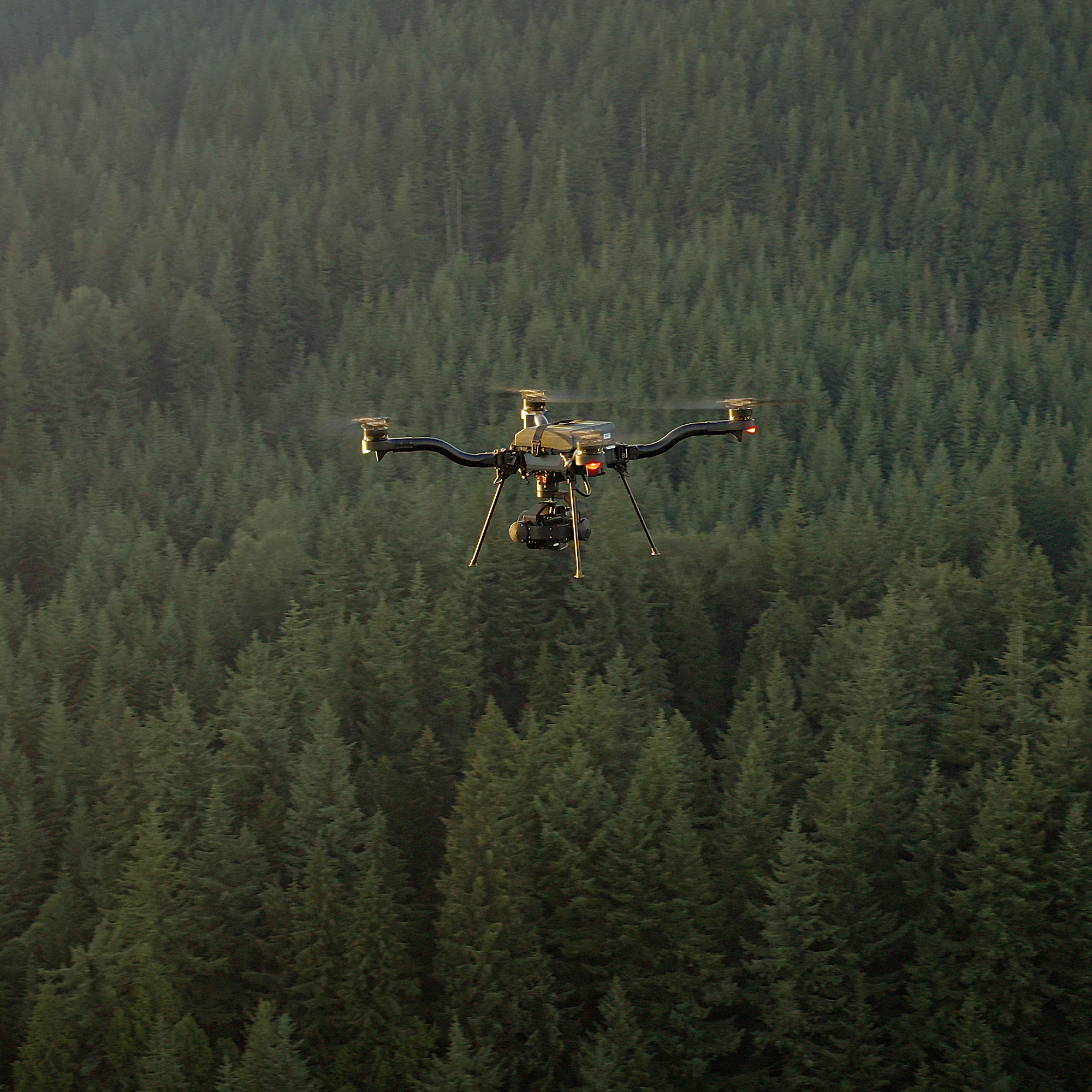

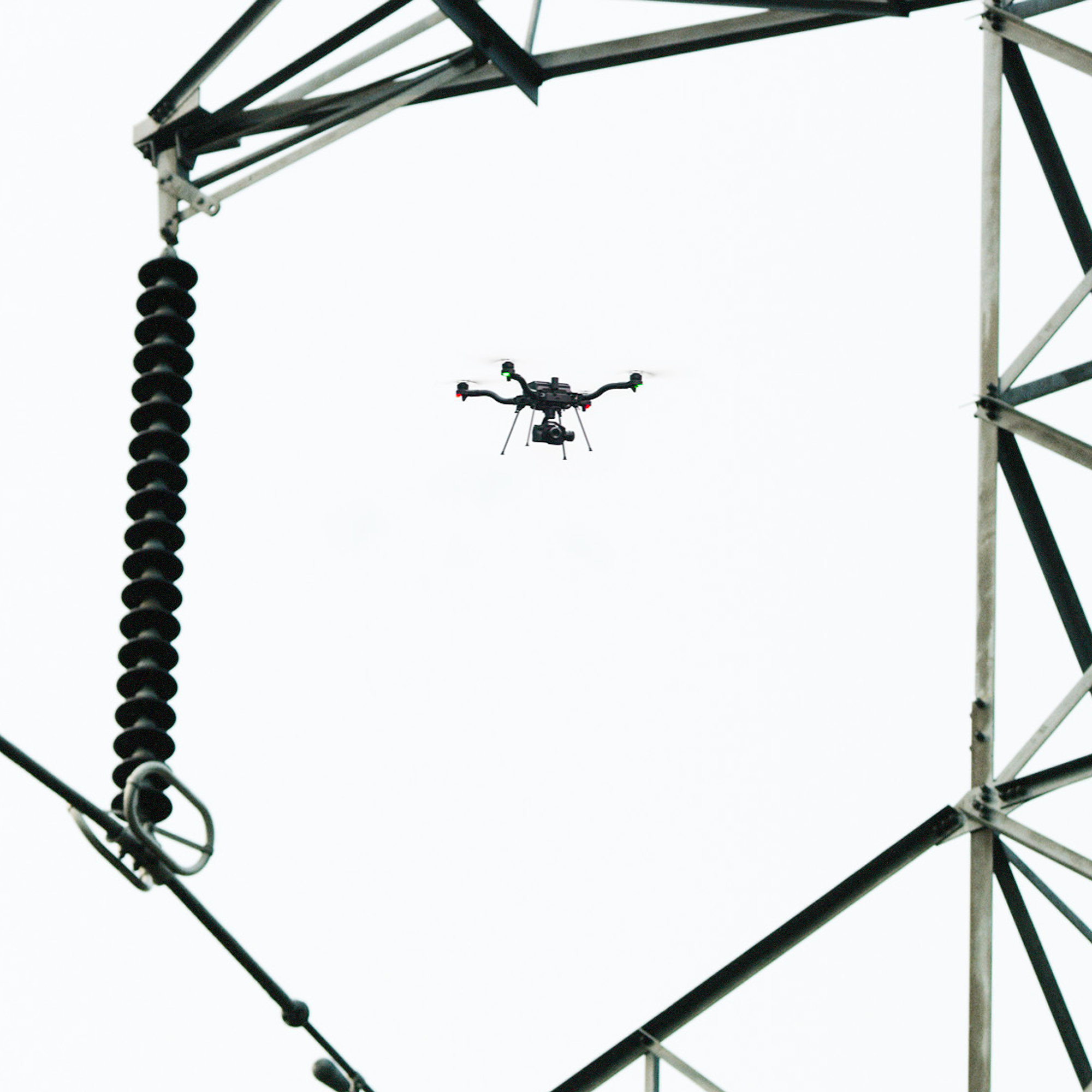

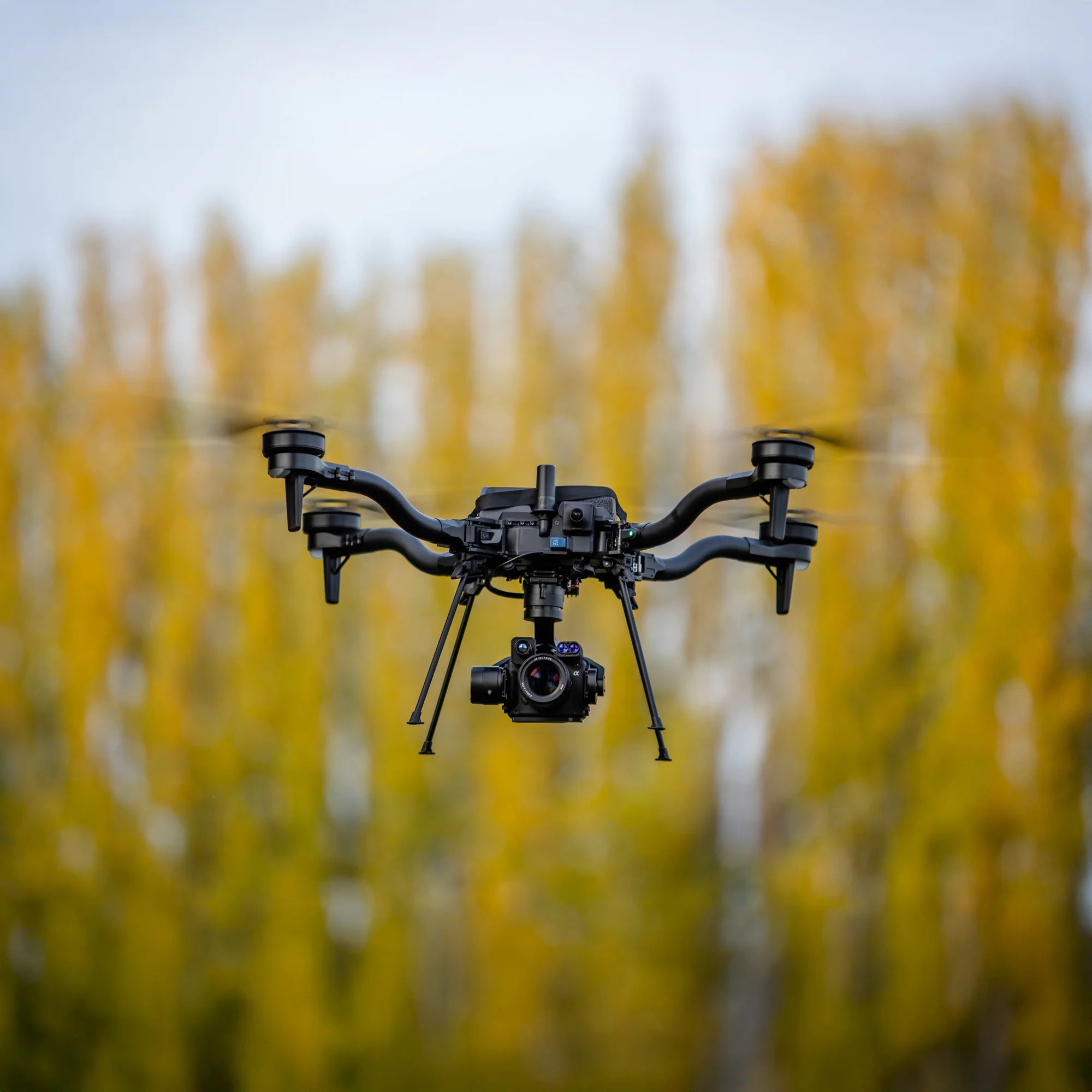

The Freefly Astro Max is a professional-grade, NDAA-compliant aerial platform built for cinema, inspection, mapping, and enterprise missions. With support for payloads up to 6.6 lbs and a modular Smart Dovetail system, it easily adapts to cameras, sensors, and specialized payloads.

Powered by 21” high-efficiency propellers and custom motors, Astro Max delivers smooth flight, low noise, strong stability, and up to 39 minutes of flight time (no payload).

Included is the Pilot Pro Controller—a rugged, IP68-rated ground station with a built-in 8” display, customizable controls, and long battery life for all-day field use.

Built on the Auterion ecosystem, Astro Max supports advanced mission planning, fleet management, and secure operations for enterprise teams.

Compact, powerful, and mission-ready—Astro Max is built for professionals who need performance without compromise.

Max Flight Distance: 1.2 Miles
Max Flight Speed: 33.5 mph
Max Wind Resistance: 26.8 MPH

43 Minutes

Max Flight Time

TECHNICAL SPECIFICATIONS

Astro Imaging

16+ Payloads



Astro Gimbal

Payloads and Weight

Maximum Gross for Takeoff 8,700 g (conditional on altitude)
Maximum Payload 3,000 g
Typical Standard Empty weight 3,523 g

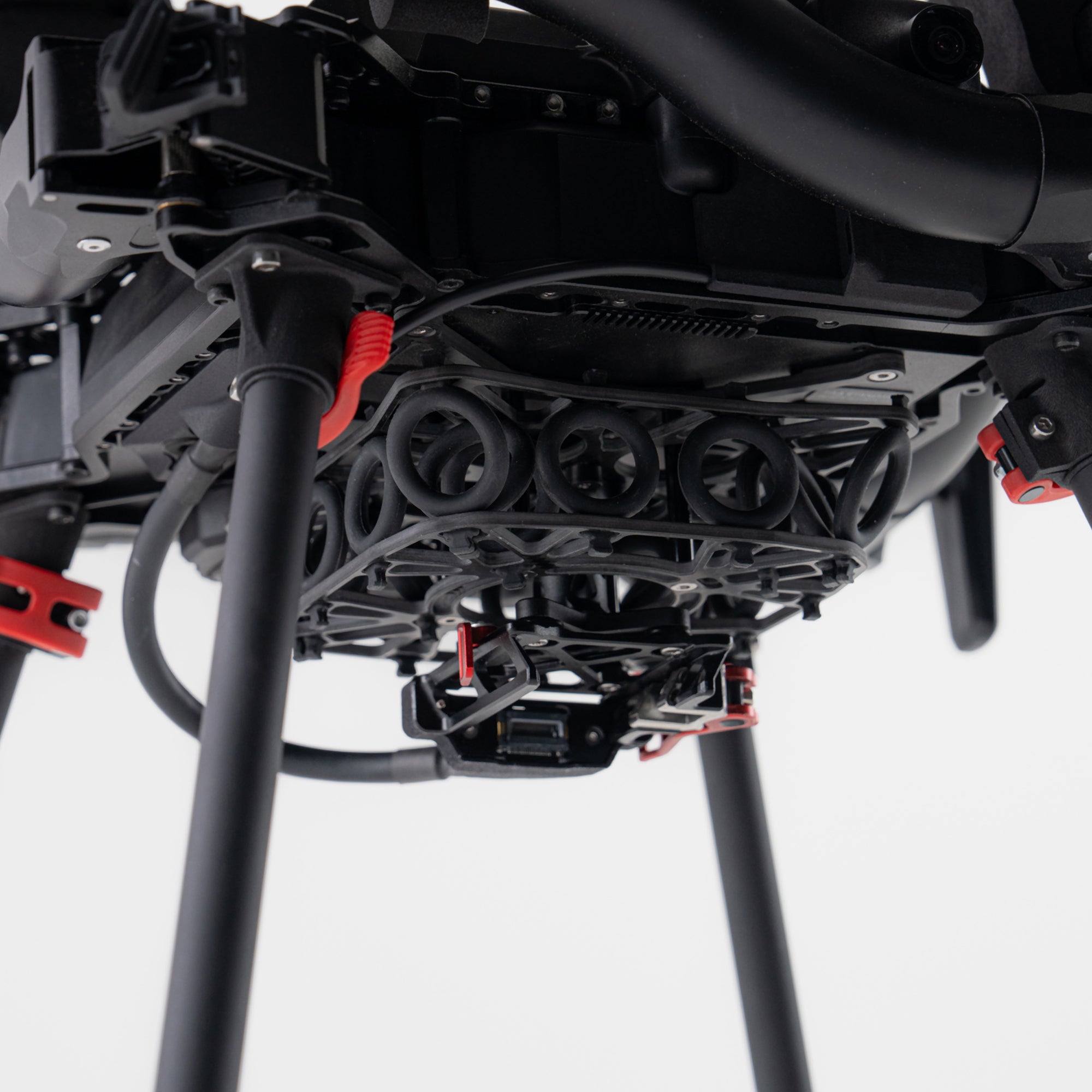

Payload Mounts Vibration Isolated Gimbal Quick Release, Vibration Isolated Cheese Plate, Toad in the Hole
Integrated Payloads LR1 Payload, Gimbaled Alpha 7R IVA Mapping Camera, Ventus OGI, Wiris Pro Payload, Flux O1, Flus L1, Flux H1, Sentera 6X, Sentera 6X Thermal, Sentera 6X Thermal Pro, Sentera 65R, Hovermap ST-X
Gimbal Quick Release Connections Power, MAVLink Communication Protocol

Astro Transmission and Stuff

Flight Controller

Flight Controller Hardware Freefly Custom Designed Skynode
Flight Controller Software Auterion Enterprise PX4 (custom for Astro)
Mission Control Software Auterion Mission Control
Online Fleet Management Auterion Suite
Flight Modes Manual, Altitude Hold, Position Hold, Autonomous Mission, Return to Land
Onboard Modules Cortex-A53 Computer, LTE
Connectivity BLE, Wifi, USB C, LTE (North America)
Supported Radios Freefly Pilot Pro (with Herelink or Doodle Labs radios)
Supported GNSS L1/L2 GPS, GLONASS, Beidou and Galileo bands

Astro Battery

Battery

Type Freefly Super Light Batteries (SL8-Air)
Cells 6S
Nominal Battery Voltage 21.6V
Capacity (SL8-Air) 157Wh
Weight (per battery) 1035 g
Operating Temp -20 to 50 C
BMS Redundant BMS with active cell balancing and storage mode
Safety Protections overvoltage, overtemperature, over-discharge
USB-C PD 5-20 V, up to 60 W output
Communication OLED User Screen CAN - for communication to the aircraft
Max Continous Current (10s) 80 A
Max Peak Current (1s) 120 A
Cell Chemistry Lithium-Ion
Charger Freefly SL8 Fast Charger

Astron Sensor

Misc

Orientation Lights Boom tip mounted lights
Orientation Light Color Options Colors can be set in software - red, orange, yellow, green, blue, purple, white, off
Operating Temperatures -20 to 50 C
Ingress Protection Tested to IP43
I/O VBAT Power Out, USB C, PWM, UART, TELEM, CAN

Freefly Warranty

Most in-stock orders ship the same day from our California warehouse. Standard delivery is typically 21-30 business days. If an item is on backorder, we provide clear updates and estimated ship dates.

Freefly products include a 12-month warranty on the flying camera device and most accessories. This coverage does not include damage caused by user error, unauthorized repairs, or disassembly. Official services include technical support, repairs, replacements, and other assistance as needed.

Open-box and used products are clearly labeled, with all condition details disclosed upfront.

Freefly Astro Max Mapping Essentials (NDAA/Blue)

The Astro Max is a modular enterprise drone designed for heavy-duty professional use. It supports up to 6.6 lb payloads via the Smart Dovetail system, making it compatible with a wide range of cameras and sensors. Large 21-inch propellers, custom motors, and optimized flight control deliver stable, efficient performance with up to 39 minutes of flight time (no payload). The foldable airframe is built for field deployment and rugged transport.



Battery

The FREEFLY Astro Max is designed for extended field operations with high-efficiency power management across both aircraft and controller.

The drone supports hot-swappable SL8 flight batteries, enabling rapid turnaround between missions without powering down the system. This allows operators to maintain continuous workflow in the field, especially during multi-flight operations.

On the ground side, the Pilot Pro Controller features a built-in battery system with external power input support, allowing hot-swapping capability for extended all-day use. The controller is optimized for long endurance, delivering up to ~5 hours of runtime depending on usage and screen brightness.

Overall, the power system is built for fast swaps, minimal downtime, and sustained mission readiness in demanding environments.

Transmission

Astro Max uses a configurable Herelink RF transmission system integrated with the Pilot Pro Controller, providing reliable long-range control and HD video feed. The system includes built-in Remote ID support, low-latency communication, and fully customizable transmission settings for different mission environments.

Safety

Built for professional operations, the Astro Max includes multiple safety and redundancy features such as an integrated Skynode flight controller, real-time telemetry monitoring, configurable geofencing via Auterion Mission Control, and an emergency kill switch on the Pilot Pro controller. The system is designed for controlled, compliant flight operations in demanding environments.
