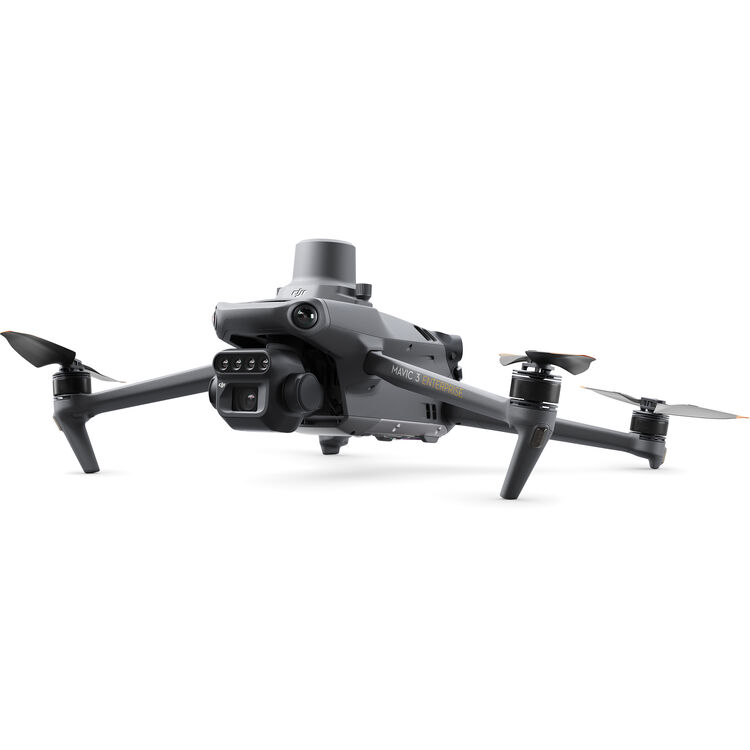

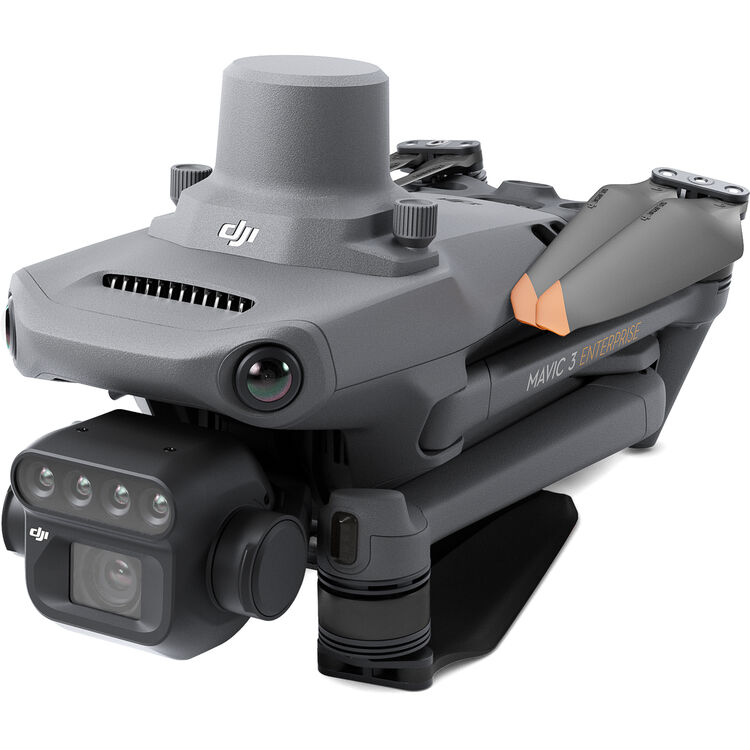

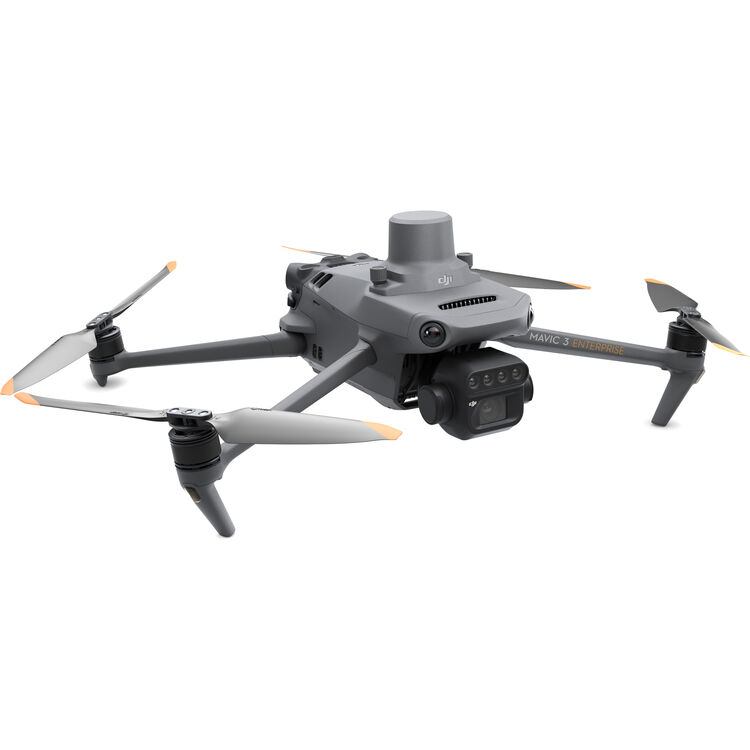

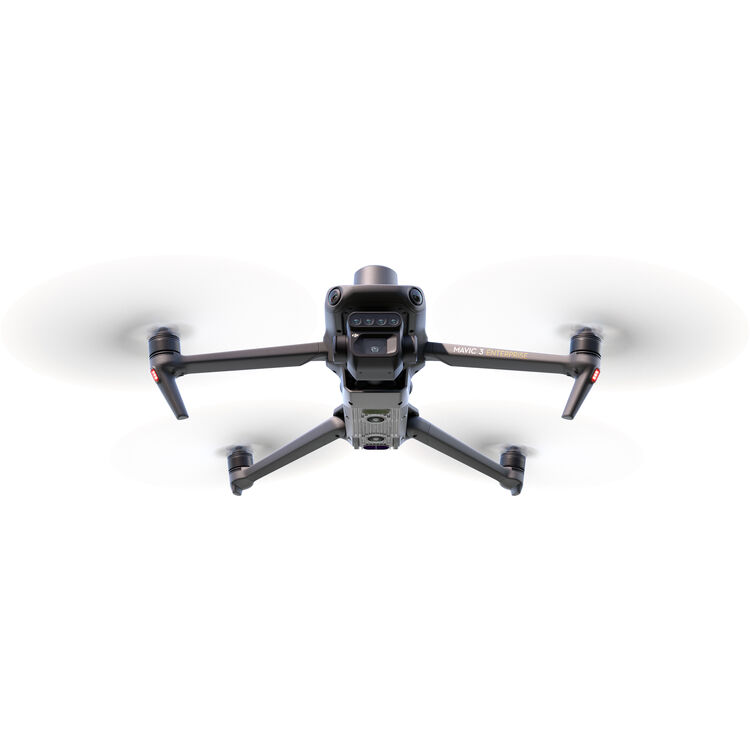

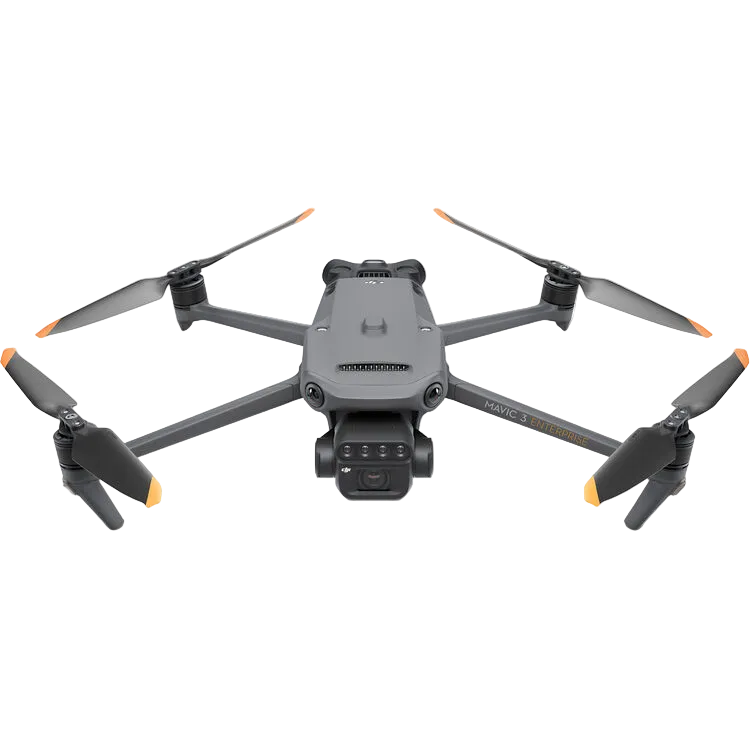

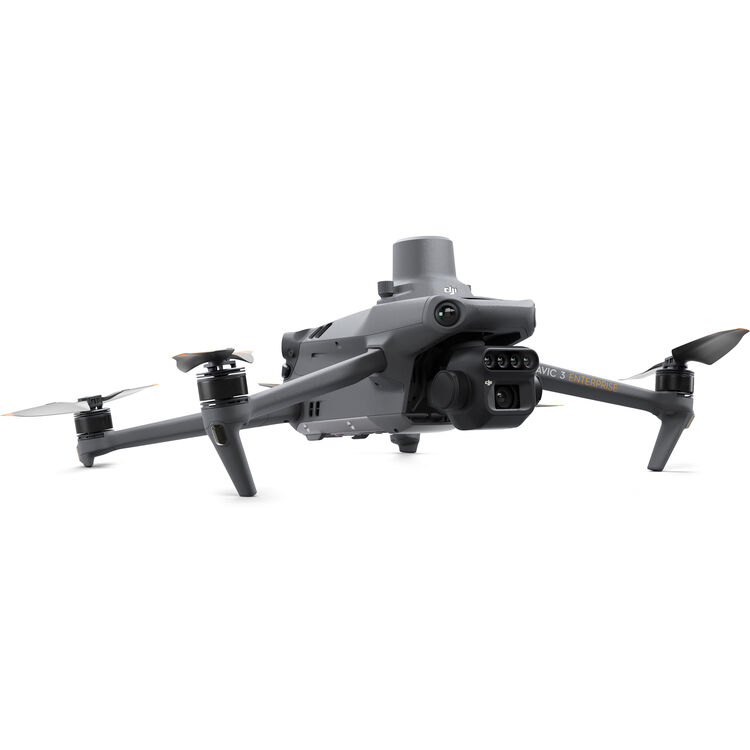

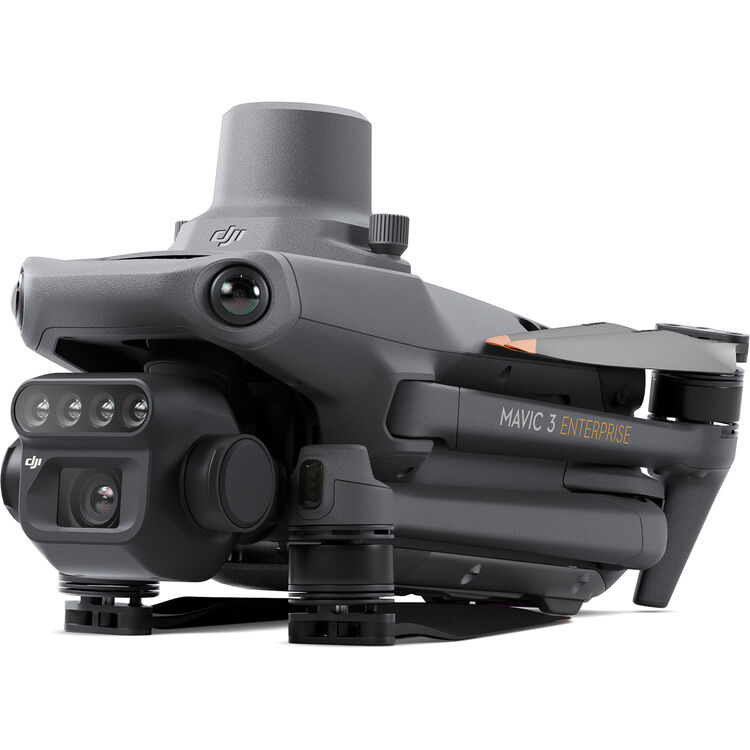

DJI Mavic 3M Multispectral Drone

$5,599.99

Select a configuration

1 Battery Bundle

What's in the Box

Estimated Ship Window

7–14 business days

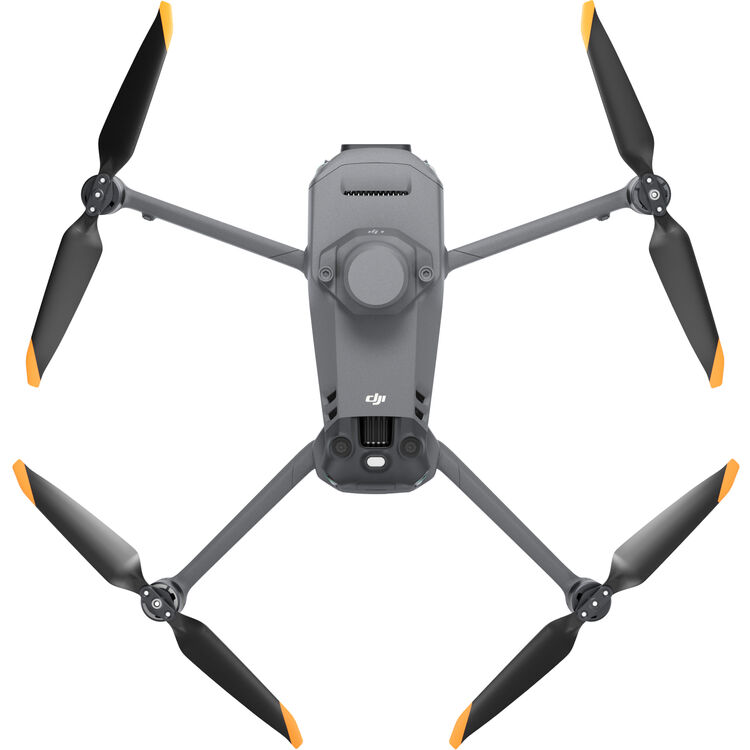

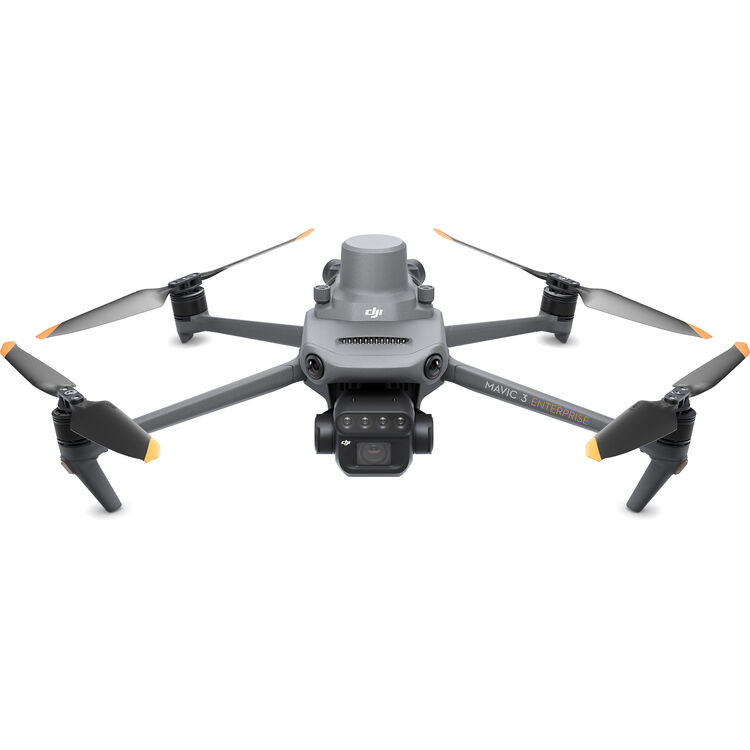

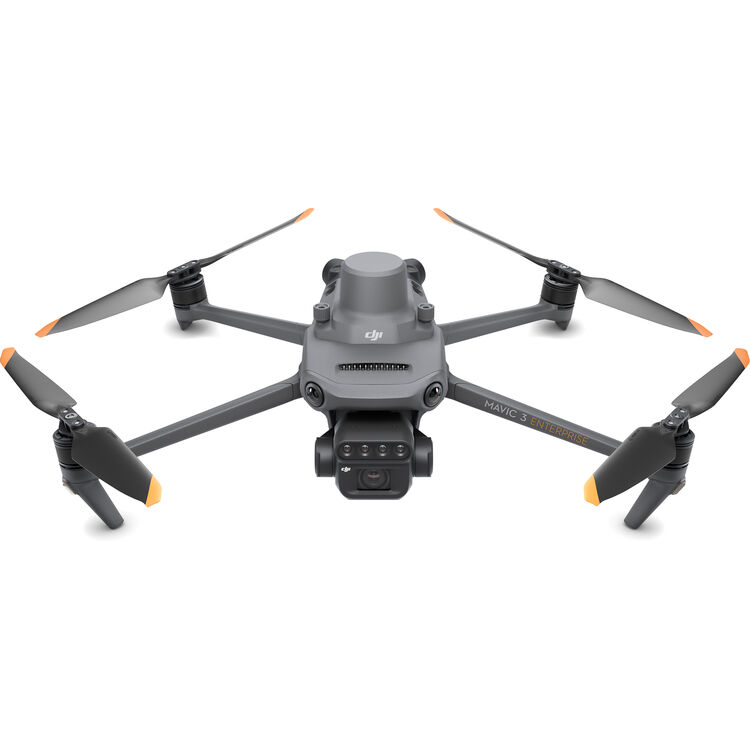

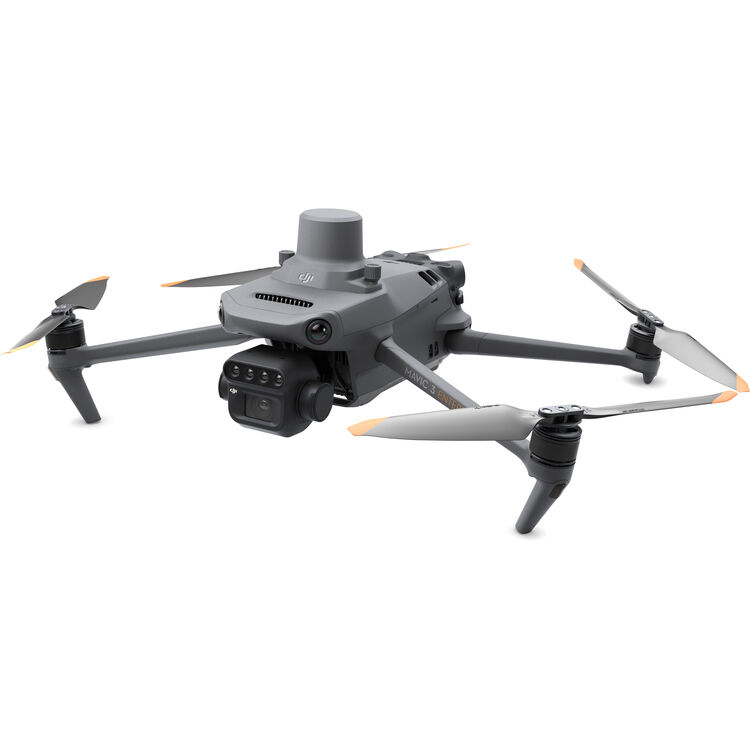

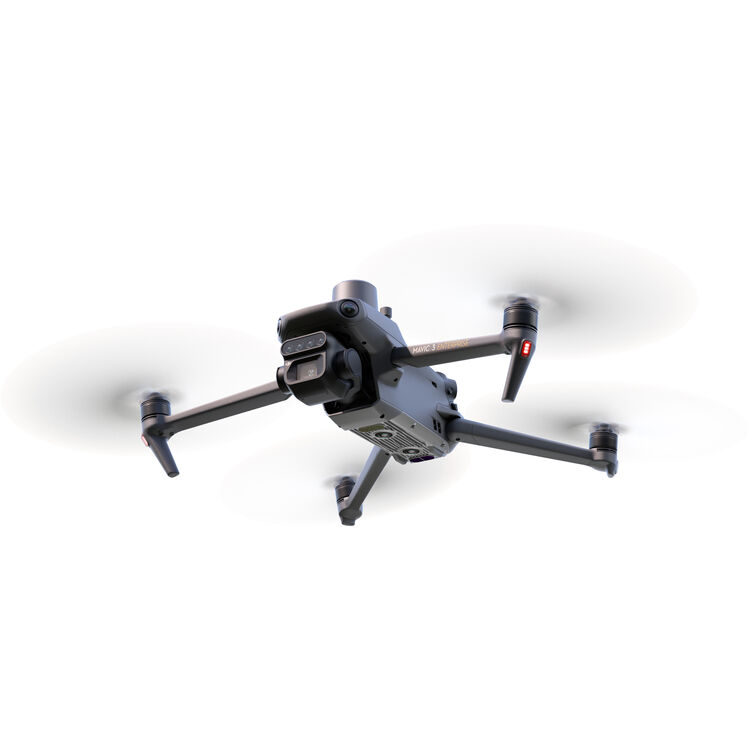

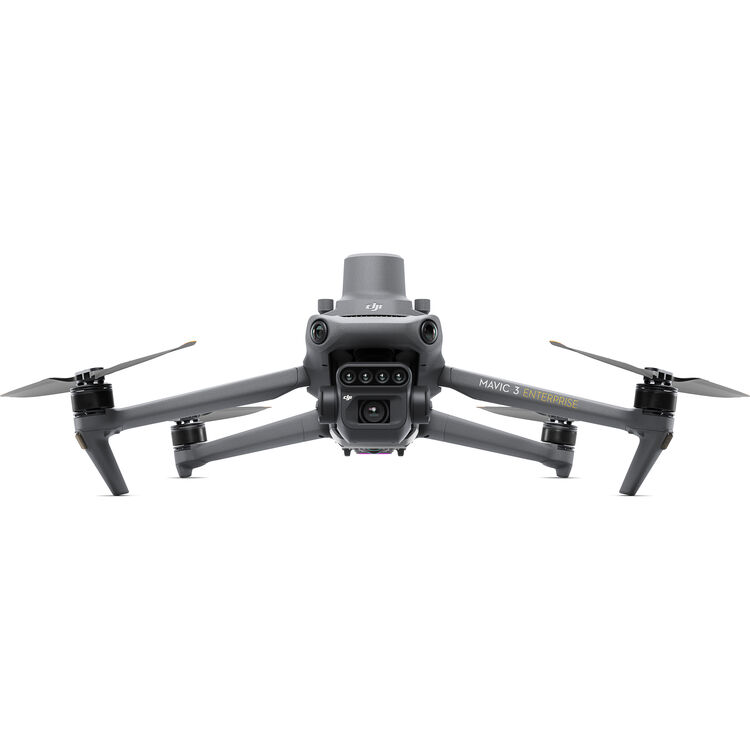

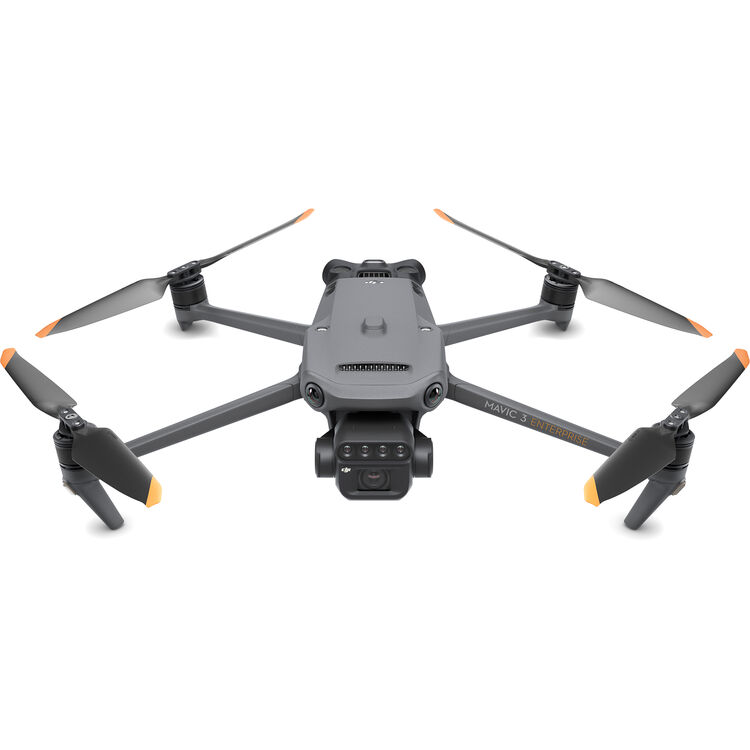

DJI Mavic 3M Multispectral Drone
Precision Data. Real-World Decisions.

Capture what the eye can’t see—and turn it into actionable intelligence. The DJI Mavic 3M Multispectral is built for professionals who need more than imagery. It delivers measurable insights across agriculture, surveying, and inspection—faster, smarter, and with uncompromising accuracy.

At its core is a powerful multi-sensor payload: a 20MP RGB camera for high-resolution visual capture, paired with four 5MP multispectral sensors recording Green, Red, Red Edge, and Near Infrared. The result? Data-rich imaging that reveals crop health, vegetation stress, and terrain detail with clarity you can trust.

Built for Precision Workflows

When accuracy matters, the Mavic 3M delivers. With its integrated RTK capabilities and omnidirectional sensing system, you can achieve centimeter-level positioning—even across complex or steep terrain. From mapping to inspections, every flight produces reliable, repeatable results.

Advanced Data, Simplified

RTK Module
Unlock high-precision aerial surveying without ground control points. Microsecond-level synchronization between the camera, flight controller, and RTK module ensures every dataset is aligned and accurate.

Sunlight Sensor
Capture real-time solar irradiance to correct imaging data during processing. This ensures consistent results across missions and dramatically improves NDVI accuracy over time.

Open. Flexible. Scalable.

Cloud API Integration
Connect directly to third-party cloud platforms through DJI’s built-in Cloud API via Pilot 2. Stream live data, sync imagery, and manage operations—without building custom infrastructure.

Mobile SDK (MSDK5)
Develop fully customized applications for surveying, patrol, or inspections with open-source support and production-ready code samples.

Performance That Keeps You Moving

Mechanical Shutter (1/2000s) for distortion-free imaging
0.7-second interval shooting for rapid data capture
Up to 43 minutes of flight time per mission
Covers up to 200 hectares in a single flight
Omnidirectional obstacle avoidance for safer operations
O3 transmission system with up to 9.3-mile range
Foldable, field-ready design for easy transport and deployment

Why Buy from US Drone Supply

Every unit is professionally inspected, verified authentic, and ready to deploy—with fast shipping from California and real support from certified drone pilots. No delays. No guesswork. Just mission-ready equipment when you need it.

💳 Explore Payment & Financing

DJI Mavic 3M Multispectral Drone

$5,599.99

DJI

Activated/Unsealed/Never Flown

DJI Mavic 3M Multispectral Drone

9.3 Miles / 15 km Max Flight Distance

43 Minutes Max Flight Time

Airtime, your kit

43 Minutes

43 Minutes per battery · rated under ideal conditions

37 Minutes

max hover

9.3 Miles / 15 km

max range

47 mph / 75.6 km/h

top speed

Batteries in your kit 2 × 43 Minutes

01 Power & endurance

More time flying than charging

Designed for longer missions and fewer interruptions, the Mavic 3M flight battery delivers up to 43 minutes of operational flight time. Whether you're surveying large properties or conducting detailed inspections, the extended endurance helps you cover more ground in a single deployment.

Auto Return-to-Home fires on a reserve charge — it comes back before it dies.

02 Video transmission

A signal that holds where you fly

Powered by DJI’s advanced O3 Enterprise transmission system, the Mavic 3M delivers stable, low-latency HD video transmission at distances up to 9.3 miles. Dual transmitting and quad receiving antennas help maintain a reliable connection even in demanding environments, giving pilots greater confidence during long-range operations.

Lose signal? Advanced Return-to-Home retraces the flight path back to launch — it doesn't fly away.

Sensing coverage

FWD AFT LEFT RIGHT

+ UP+ DOWN Omnidirectional with Infrared Enhancement

03 Obstacle avoidance

Fly with some armor.

Fly confidently in complex environments with omnidirectional obstacle sensing. Wide-angle vision sensors on all sides of the aircraft help detect and avoid obstacles automatically, improving operational safety during low-altitude flights, terrain following, and automated missions.

Even great sensors aren't a force field. USDS Care covers accidental damage and crash repairs.

TECHNICAL SPECIFICATIONS

3M Imaging

Number of Cameras	3 (Supports Individual Camera + FPV Simultaneously)
Camera System	Wide 20 MP, 4/3"-Type CMOS Sensor with 24mm-Equivalent, f/2.8 Lens (84° FoV) Multispectral 5 MP, 1/2.8"-Type CMOS Sensor with 25mm-Equivalent, f/2 Lens (73.91° FoV)
Zoom	8x Optical
Minimum Focus Distance	Wide 3.3' / 1 m
ISO Sensitivity Range	Wide 100 to 6400
Night Vision	No
Shutter Speed	Wide Electronic Shutter: 1/8000 to 8 Seconds (Photo/Video) Mechanical Shutter: 1/2000 to 8 Seconds (Photo/Video) Multispectral Electronic Shutter: 1/12800 to 1/30 Seconds (Photo/Video)
Maximum Video Resolution	Wide Up to 1080p at 30 fps / UHD 4K at 30 fps Multispectral Up to 1080p at 30 fps
Still Image Support	Wide Up to 20 MP (DNG / JPEG) Multispectral Up to 5 MP (TIFF)
Photo Modes	Burst Shooting, Interval, Single Shot
Media/Memory Card Slot	In Aircraft Body microSD/microSDHC/microSDXC [512 GB Maximum / U3/V30 or Faster Recommended] In Remote/Transmitter microSD/microSDHC/microSDXC
Internal Storage	In Remote/Transmitter 64 GB

3M Gimbal

Number of Axes	Three: Pitch (Tilt) / Roll / Yaw (Pan)
Rotation Range	Controllable Range Pitch (Tilt): 125° (-90 to 35°) Mechanical Range Yaw (Pan): 54° (-27 to 27°) Roll: 90° (-45 to 45°) Pitch (Tilt): 180° (-135 to 45°)
Follow Speed	Tilt: 100°/s
Stabilization Accuracy	±0.007°

3M Transmission

Control Method	Included Transmitter
Transmission System	OcuSync 3.0 (O3) Frequencies: 2.4 GHz (2.4 to 2.4835) / 5.8 GHz (5.725 to 5.85) Power at 2.4G: 33 dBm (FCC) / 20 dBm (CE/MIC/SRRC) Power at 5.8G: 33 dBm (FCC) / 30 dBm (SRRC) / 14 dBm (CE)
Maximum Operating Distance	9.3 Miles / 15 km
Transmitter I/O	1x Mini-HDMI Output (Video) 1x USB-C Input (Power)
Clean Video Output	Not Specified by Manufacturer
Battery Type	Built-In Lithium-Ion (5000 mAh)
Operating Temperature	14 to 104°F / -10 to 40°C
Mobile App Compatible	Yes: Android Only
Built-In Display	5.5" (1920 x 1080) Touchscreen LCD, 1000 nits/ cd/m²
Dimensions	7.22 x 5.41 x 1.9" / 183.27 x 137.41 x 47.6 mm (Antennas Folded, Joystick Unmounted) 7.22 x 8.01 x 2.36" / 183.27 x 203.35 x 59.84 mm (Antennas Unfolded, Joystick Mounted)

3M Battery

Battery Chemistry	Lithium Cobalt Oxide (LiCoO2)
Battery Capacity	5000 mAh / 77 Wh
Battery Configuration	4 S / 15.4 V
Maximum Charging Power	17.6 V
Charging Temperature	41 to 104°F / 5 to 40°C
Weight	11.8 oz / 335.5 g

3M Sensor

Avoidance/Sensing System

Sensing System

Omnidirectional with Infrared Enhancement

Sensing System Capabilities

Forward
Measurement Range: 1.6 to 65.6' / 0.5 to 20 m
Detection Range: 1.6 to 656.2' / 0.5 to 200 m
Max Speed: 33.6 mph / 15 m/s
Field of View: 90° (Horizontal) / 103° (Vertical)
Backward
Measurement Range: 1.6 to 52.5' / 0.5 to 16 m
Max Speed: 26.8 mph / 12 m/s
Field of View: 90° (Horizontal) / 103° (Vertical)
Lateral
Measurement Range: 1.6 to 82.0' / 0.5 to 25 m
Max Speed: 33.6 mph / 15 m/s
Field of View: 90° (Horizontal) / 85° (Vertical)
Upward
Measurement Range: 0.7 to 32.8' / 0.2 to 10 m
Max Speed: 13.4 mph / 6 m/s
Field of View: 100° (Front-to-Back) / 90° (Side-to-Side)
Downward
Measurement Range: 1.0 to 59.1' / 0.3 to 18 m
Max Speed: 13.4 mph / 6 m/s
Field of View: 130° (Front-to-Back) / 160° (Side-to-Side)

Next, add content or select a page for this tab

Flight specifications

quick look

Max Speed

47 mph / 75.6 km/h

Max Ascent

17.9 mph / 28.8 km/h

Max Descent

13.4 mph / 21.6 km/h

Service Ceiling

19685 ft / 3.73 mi

Max Flight Distance

9.3 Miles / 15 km

Max Flight Time

43 Minutes

Max Hover Time

37 Minutes

Wind Resistance

26.8 mph / 43.1 km/h

Weight

LightHeavy

2.1 lb / 951 g (With Propellers)

Remote ID

Yes

Equipped
