DJI T100 Intelligent Airframe – Big Drone, Big Jobs

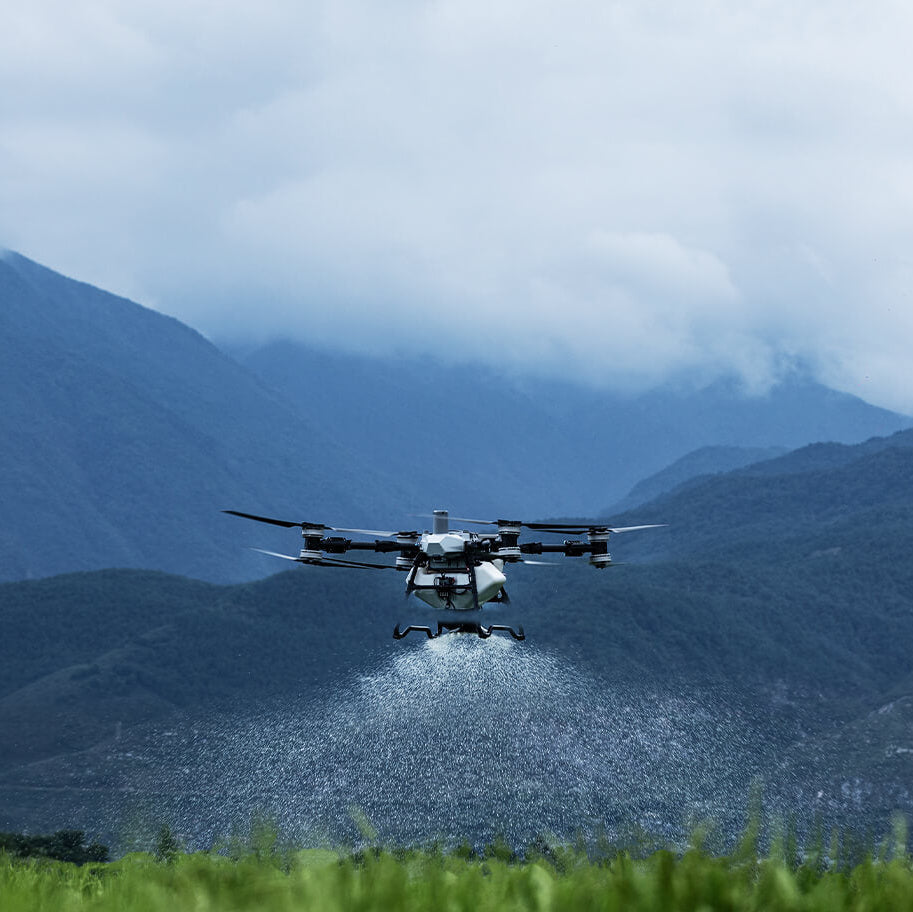

The DJI T100 is DJI's most capable agricultural drone airframe to date, engineered for large-acreage spraying, spreading, and aerial lifting operations. Twelve years in the making, the T100 combines a 100 kg operating payload with industry-leading safety systems, LiDAR and millimeter-wave radar sensing, and doubled operational efficiency over previous Agras models — built for operators who need to cover more ground, faster.
This listing is for the T100 airframe only. Spraying systems, spreading systems, flight batteries, power supplies, and lifting systems are sold separately so you can configure the exact setup your operation needs.
Applications

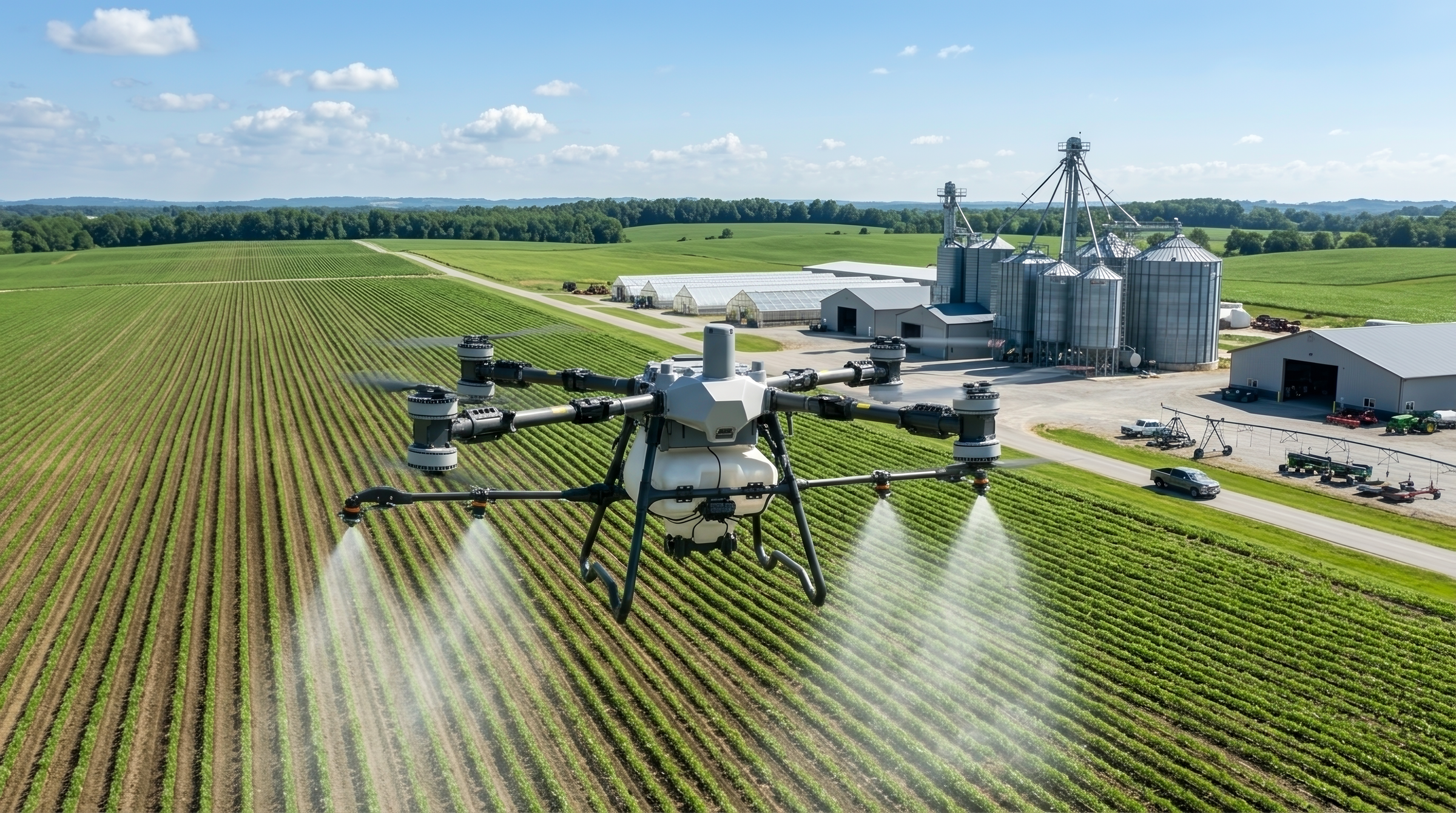

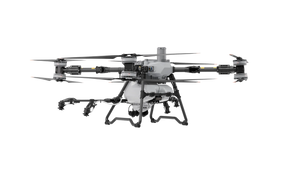

Crop Spraying: Pair with the DJI T100 Spraying System for large-scale row crop and orchard applications.
Fertilizer & Seed Spreading: Pair with the DJI 150L Spreading System for fast, even coverage.
Aerial Lifting: Pair with the DJI Dual-Battery Lifting System for material transport and logistics use cases beyond traditional spray operations.
What's Included

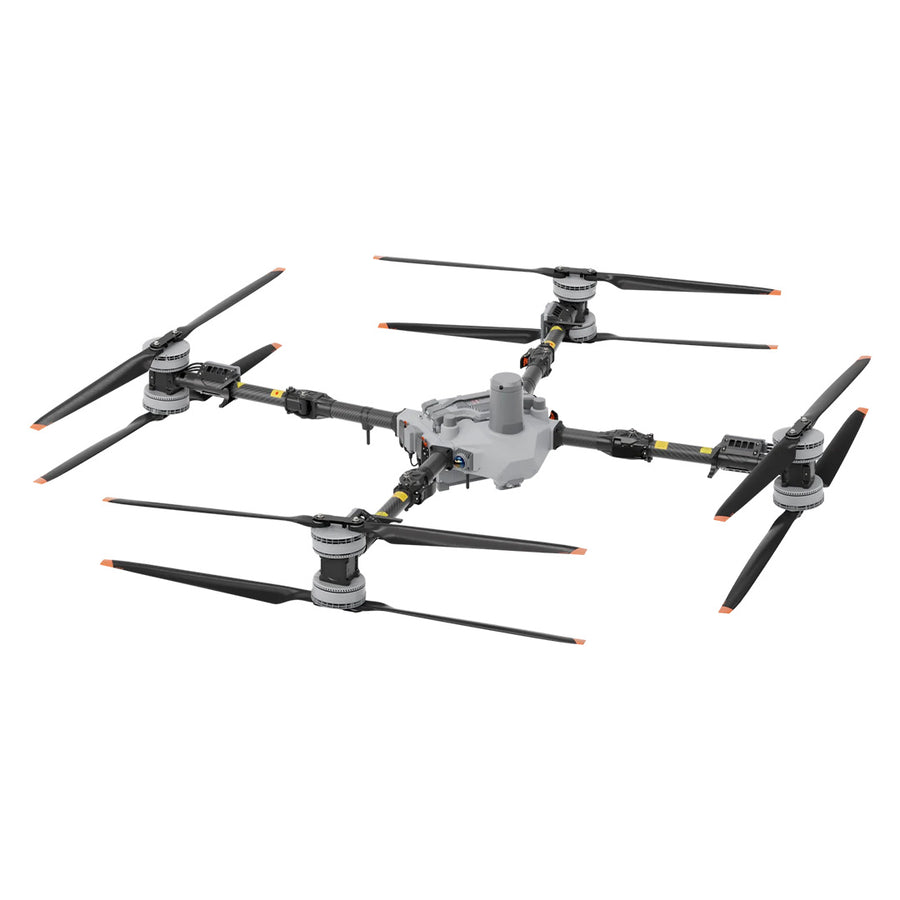

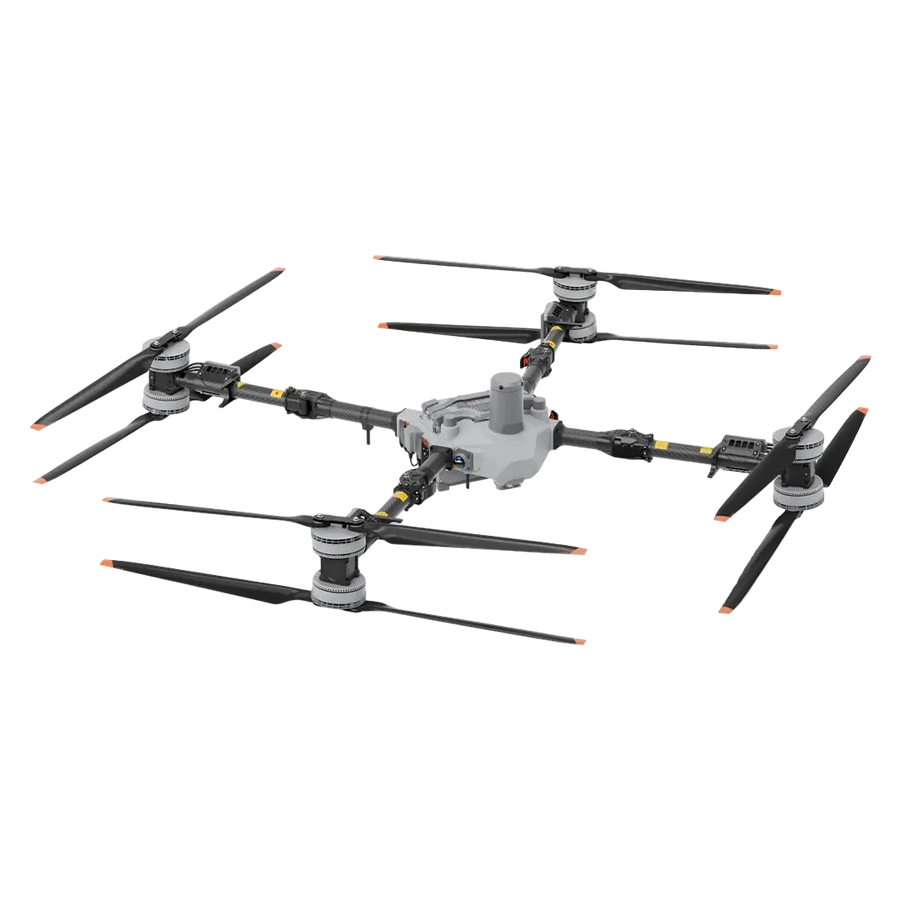

DJI T100 Airframe
Spraying/spreading systems, flight batteries, power supplies, and lifting systems sold separately.
Built forCrop SprayingFertilizer & Seed SpreadingAerial Lifting
N/A — governed by 2 km flight radius, not battery rangeMax Flight Distance
Included Remote
Every drone package includes a DJI Remote Controller
Default
DJI RC Plus 2 Enterprise Enhanced Controller
The DJI RC Plus 2 delivers precise, responsive control for the Matrice 4 series, giving operators confidence in even the most demanding missions. Its extended battery life supports longer operations without interruption, making it ideal for critical, time-sensitive tasks.
With real-time video transmission, pilots maintain clear situational awareness by seeing exactly what the aircraft sees at all times. Built for professional use, the RC Plus 2 features a rugged, durable design engineered to withstand harsh environments and frequent field deployment. Long-range transmission ensures reliable signal strength across expansive operational areas, while intuitive controls simplify complex maneuvers for safer, more efficient flight.

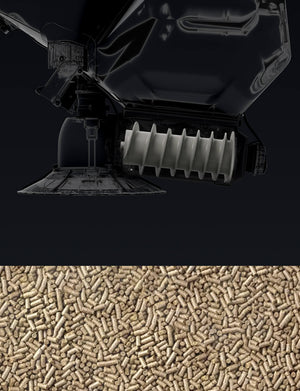

The DJI 150L Spreading System equips the T100 airframe for fertilizer and seed spreading. A 150 L hopper feeds a centrifugal spreader capable of up to 400 kg/min discharge and a 3–10 m spread width, for fast, even coverage across large fields.
Tank capacity: 150 L
Max discharge rate: 400 kg/min
Effective spread width: 3–10 m
Compatible with: DJI T100 Airframe
DJI T100 Spraying System with Air-Cooled Heat Sink$3,638.00
//usdronesupply.com/cdn/shop/files/dji-t100-spraying-system.jpg?v=1786572148&width=800DJI T100 Spraying System with Air-Cooled Heat SinkDJI T100 Spraying System with Air-Cooled Heat Sink$3,638.00
The DJI T100 Spraying System (model LS100) turns the T100 airframe into a full crop-spraying platform. Includes the 100L spray tank, dual delivery pumps with an air-cooled heat sink, and standard 2-nozzle sprinklers (LX07550SX) delivering 30 L/min flow and a 5–13 m effective spray width.

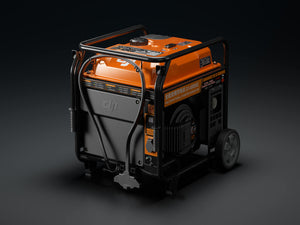

The D14000iEP Multifunctional Inverter Generator keeps T100 operations running off-grid, providing field power for charging batteries and running support equipment far from mains power — ideal for full-day spraying and spreading operations in remote fields.
Portable, wheeled inverter generator
Multifunctional AC output for charging and field equipment
The DB2160 Intelligent Flight Battery powers the DJI T100 airframe. A 41,000 mAh, 52V pack built for full-payload agricultural work, it pairs with the C10000 or C12000 Smart Charger for Ultra-Fast Charging — recharging 30%–95% in as little as 8–9 minutes.
Capacity: 41,000 mAh
Nominal voltage: 52 V
Weight: 14.7 ± 0.3 kg
Compatible with: DJI T100 Airframe
C12000 Intelligent Power Supply$2,279.00
//usdronesupply.com/cdn/shop/files/dji-c12000-power-supply.jpg?v=1786572149&width=800C12000 Intelligent Power SupplyC12000 Intelligent Power Supply$2,279.00
The C12000 Smart Charger (model CSX901-12000) is DJI's high-power charging station for the T100's DB2160 flight battery, recharging 30%–95% in as little as 8–9 minutes. Supports three-phase (12,000W) or single-phase (3,000W) AC input.
The DJI T100 Mist Nozzle Package (model LX09550SX) upgrades the standard spraying system to a fine-mist optional nozzle configuration — up to 4 nozzles for finer droplet control and wider effective coverage on demanding spray jobs.

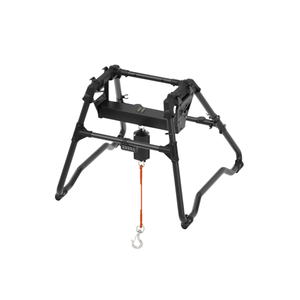

The DJI Dual-Battery Lifting System turns the T100 airframe into an aerial cargo platform, integrating support for two intelligent flight batteries for extended endurance and up to 80 kg load capacity. Includes auto balance control, weight detection, and an emergency cable-fuse quick-release.
Load capacity: 80 kg
Lifting cable length: 10 m standard (10–15 m recommended)

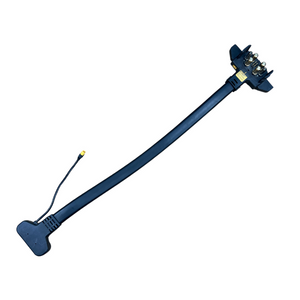

The DB2100 Intelligent Flight Battery Adapter Cable lets you charge a DB2100 or DB2160 Intelligent Flight Battery using the C10000 or C12000 charger. A simple, essential accessory for building out backup batteries or replacing a damaged cable.
Compatible with: T60X / T70 / T100 batteries
Works with: C10000 / C12000 Smart Chargers
C10000 Intelligent Power Supply$1,999.00
//usdronesupply.com/cdn/shop/files/dji-c10000-power-supply.jpg?v=1786572149&width=800C10000 Intelligent Power SupplyC10000 Intelligent Power Supply$1,999.00
The DJI C10000 Intelligent Power Supply is a high-capacity charging station for DJI's Agras lineup, charging the T100's flight batteries in as little as 9–12 minutes on a 220V outlet. A dependable, portable charging option for continuous field operations.

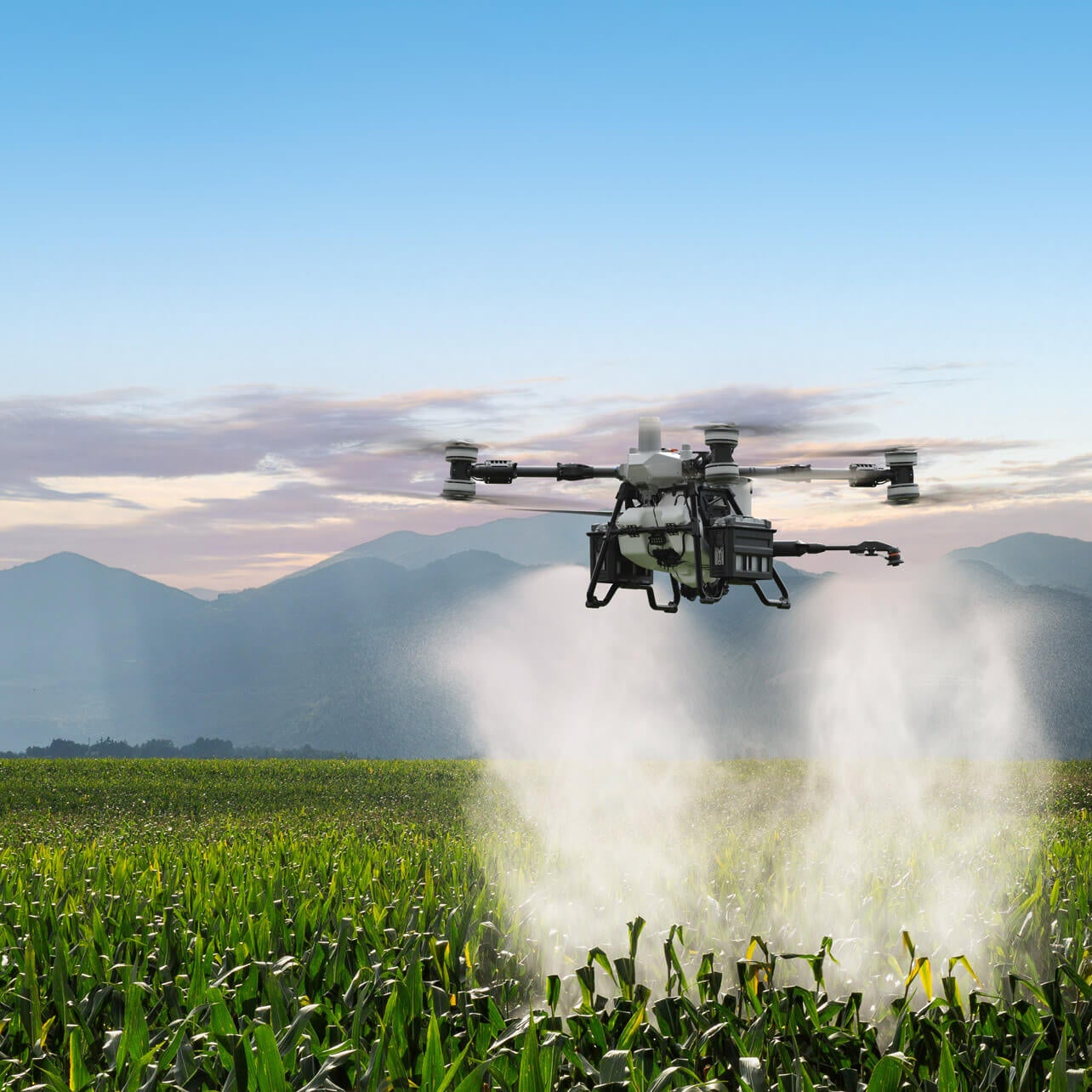

The T100's spraying system pairs a 100L tank with dual delivery pumps and an air-cooled heat sink, so pump temperature stays in check through long, continuous runs. Standard 2-nozzle setups cover 30 L/min; step up to the optional 4-nozzle configuration and flow climbs to 40 L/min for faster coverage on bigger fields.
Nozzle configuration: 2 or 4 nozzles (optional)
Dual delivery pumps with an air-cooled heat sink keep flow steady through long, continuous runs.
Coverage arc
9.8-32.8 ft / 3-10 m spread width
39.6 gal / 150 L
tank capacity
882 lbs/min / 400 kg/min
discharge rate
02 Spreading system
Fast, even fertilizer and seed coverage
The 150L spreading system moves fertilizer and seed through a high-torque auger at up to 400 kg/min, casting material in a controlled arc across a 3–10 m spread width — fast, even coverage without the double-spraying or gaps that come from inconsistent hand or ground spreading.
A high-torque auger delivers a controlled, even arc — no double-spreading, no gaps.
Lift capacity
176.4 lbs / 80 kg
±10 cm horizontal / ±10 cm vertical (RTK enabled) RTK hovering accuracy
32.8 ft / 10 m (10-15 m recommended)
cable length
03 Payload & precision
More than a spray rig
Swap the spray or spread tank for the Dual-Battery Lifting System and the T100 becomes a heavy-lift platform — rated for 80 kg on a 10 m cable (extendable to 10–15 m), with cable-fuse disconnect as an emergency escape mode. Paired with RTK hovering accuracy of ±10 cm, it holds position precisely enough for controlled pickups and drops, not just spraying passes.
Cable-fuse disconnect gives the Dual-Battery Lifting System a built-in emergency escape mode.
Field-tested ROI
What would this save you?
Enter your spray area to compare the T100 against a fixed-wing plane, helicopter, or ground rig.
acres
per season
DJI T100 Drone
—
per application
$—
per season
—
crew
Fixed-Wing Plane
—
per application
$—
per season
—
crew
Helicopter
—
per application
$—
per season
—
crew
Ground Rig
—
per application
$—
per season
—
crew
—%
less time in the field
$—
saved per season
—
fewer people needed
Beyond time and labor: drone application typically uses 30–50% less chemical and carrier water than ground rigs, leaves no wheel tracks or soil compaction, and needs no pilot's license, hangar, or landing strip — it can be in the air the same day.
Estimates only. Drone coverage rate is DJI's declared typical operating efficiency for this aircraft; plane, helicopter, and ground-rig figures are editable industry-average assumptions and will vary by region, field shape, and provider.
TECHNICAL SPECIFICATIONS
T100 Imaging
The DJI T100 is a heavy-lift agricultural airframe built for spraying, spreading, and aerial lifting — it does not carry a gimbal-mounted imaging camera or photo/video payload the way DJI's mapping and inspection drones do. Its onboard vision system (LiDAR, Penta-Vision, and millimeter-wave radar, detailed on the Sensor tab) exists purely for obstacle sensing and safe low-altitude flight over fields, not for capturing imagery.
No imaging specifications are published for this aircraft.
T100 Gimbal
The DJI T100 does not include a gimbal. As a dedicated spray, spread, and lifting platform, its payload bay is built for the DJI T100 Spraying System, 150L Spreading System, and Dual-Battery Lifting System — not a camera gimbal.
No gimbal specifications are published for this aircraft.
Laser radar: Vertical 272°, Horizontal 60° Front Radar: Horizontal 360°, Vertical ± 45° Downward Radar: Left and Right ± 12.5°, Front and Back ± 22.5° Rear Radar: Left and Right ± 45°, Front and Back ± 45° Quad vision system: Horizontal 360°, Vertical 180° FPV camera: Horizontal ± 86°, Vertical 108°
Measurement Range
≤ 60 m
Effective Safe Obstacle Avoidance Speed
≤ 13.8 m/s
Effective Obstacle Avoidance Height
≥ 1.5 m
Safe Distance
2.5 m (distance between the drone and obstacle after braking and stable hovering)
Next, add content or select a page for this tab
Field specificationsBuilt for the field
SPECIFICATIONS
Spraying Flow Rate
7.9-10.6 gal/min / 30-40 L/min
Spraying Tank
26.4 gal / 100 L
Spreading Tank
39.6 gal / 150 L
Max Discharge Rate
882 lbs/min / 400 kg/min
Spread Width
9.8-32.8 ft / 3-10 m
Spray Width
16.4-42.7 ft / 5-13 m
Hovering Accuracy
±10 cm horizontal / ±10 cm vertical (RTK enabled)
Droplet Size
50-500 μm
Max Payload
LightHeavy
220.5 lbs / 100 kg
Nozzle Configuration
2 or 4 nozzles (optional)
01
01 — Battery
DJI T100 Intelligent Airframe Battery
The T100 is powered by DJI's DB2160 Intelligent Flight Battery — a 41,000 mAh, 52V pack built for the demands of full-payload agricultural work. Paired with Ultra-Fast Charging and a battery cooling station, operators can rotate through batteries between sorties to keep the aircraft in the air instead of the charging bay during peak spraying and spreading windows.
02
02 — Inspect
DJI T100 Intelligent Airframe Transmission
DJI O4 transmission delivers a stable, low-latency link between the aircraft and the RC Plus 2 controller, with a maximum range of up to 2 km (FCC) — enough coverage for full-field operations without losing control authority at the edges of large plots.
03
03 — Obstacle Avoidance
DJI T100 Intelligent Airframe Obstacle Avoidance
The T100 combines LiDAR, a Penta-Vision camera array, and millimeter-wave radar to sense obstacles in every direction — power lines, tree lines, structures, and terrain changes — even in dust, low light, or spray drift where optical-only systems struggle. Detected obstacles trigger automatic braking or rerouting, keeping full-payload flights safe at low altitude over working fields.
