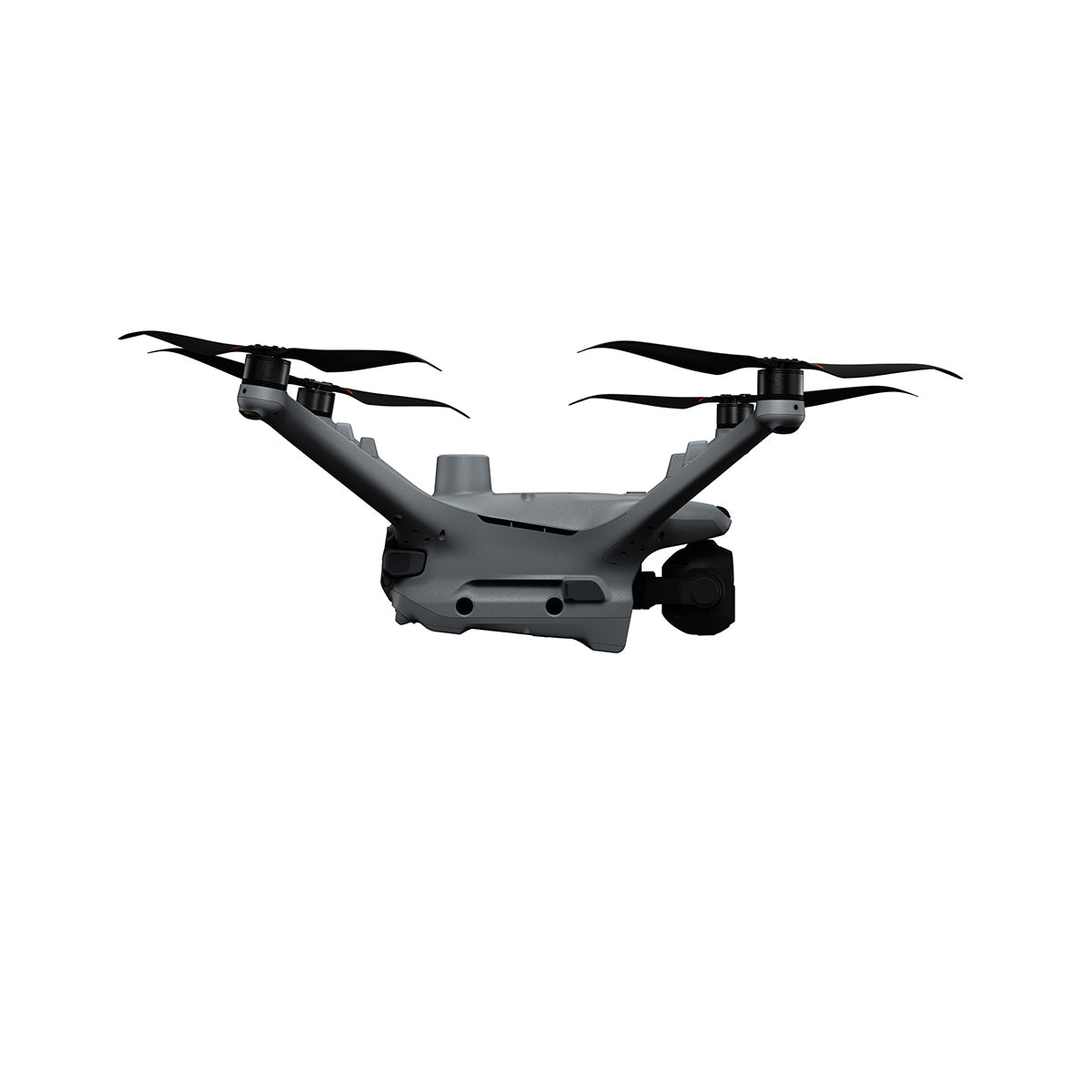

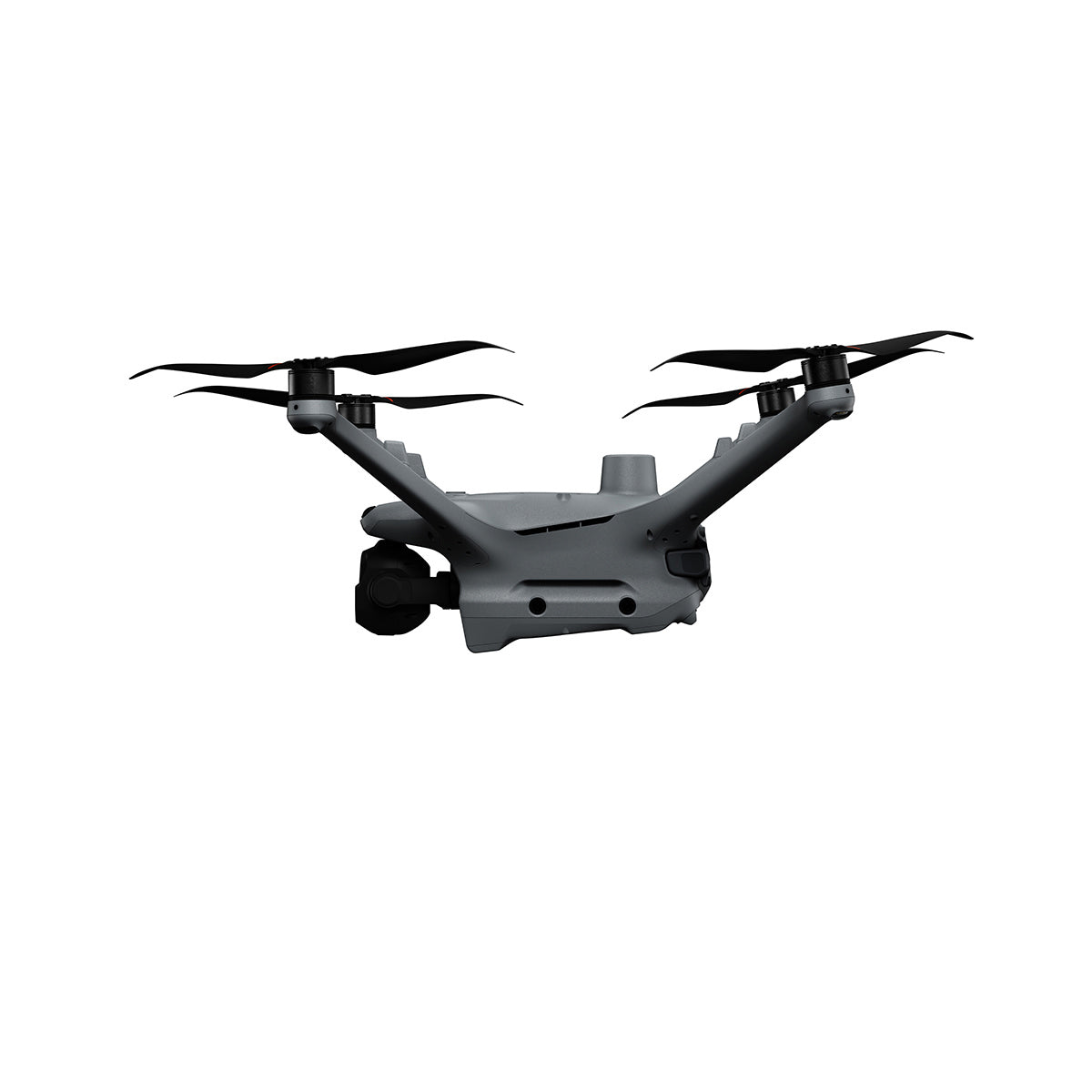

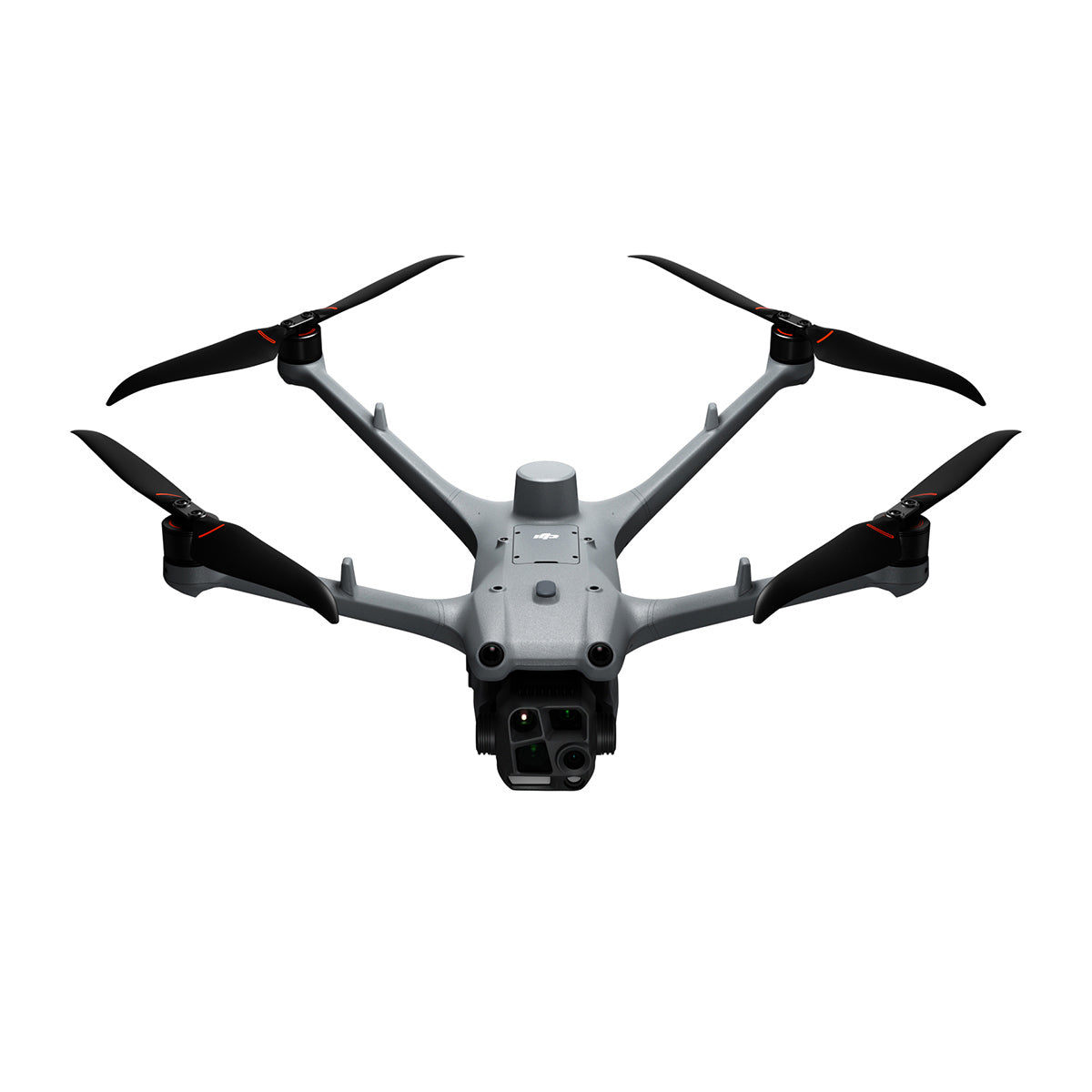

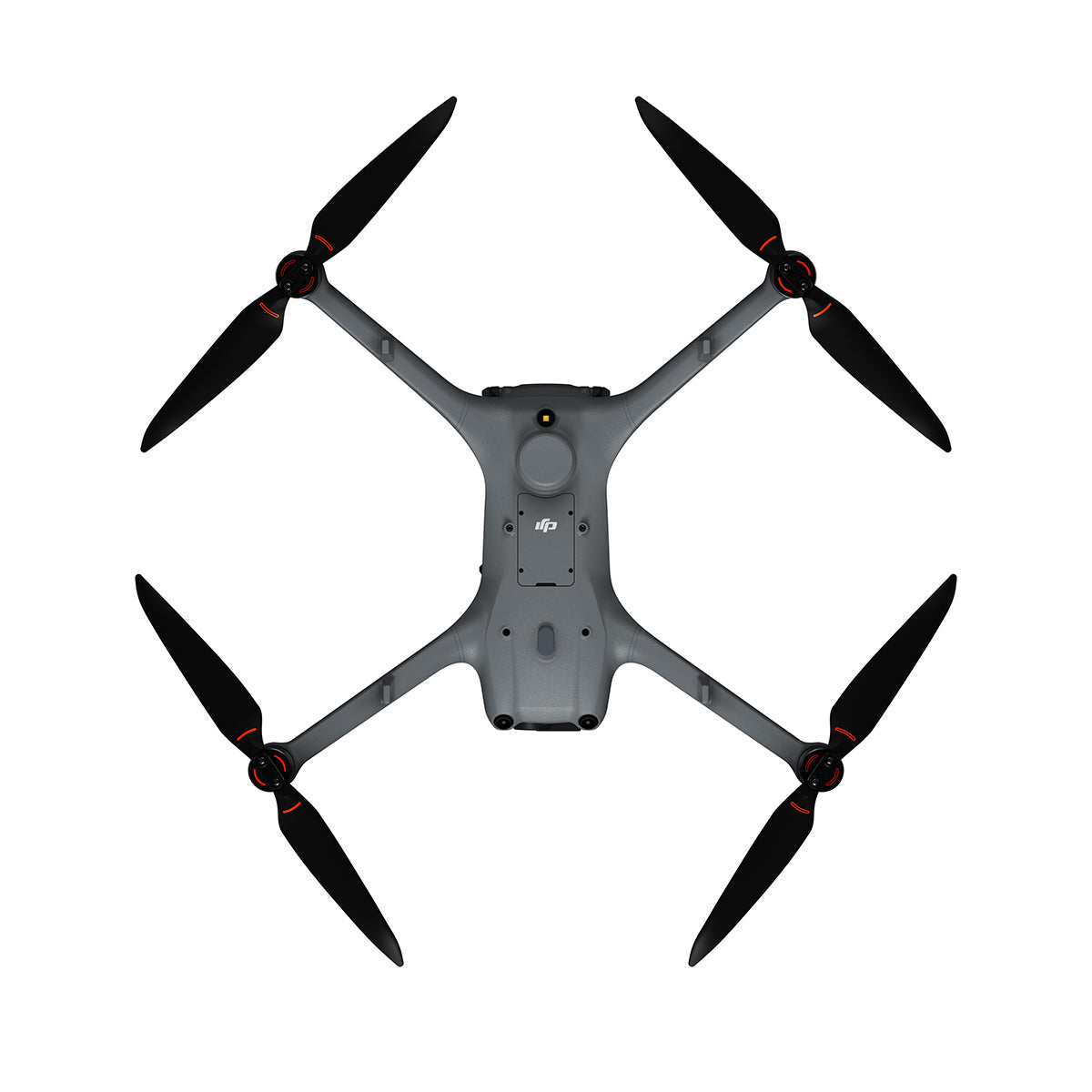

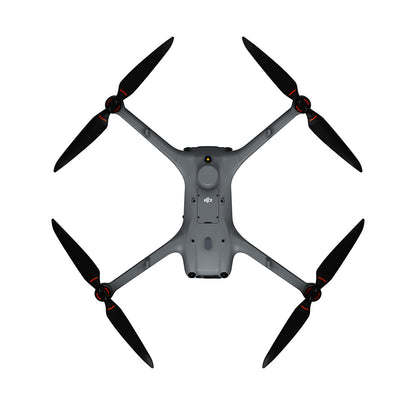

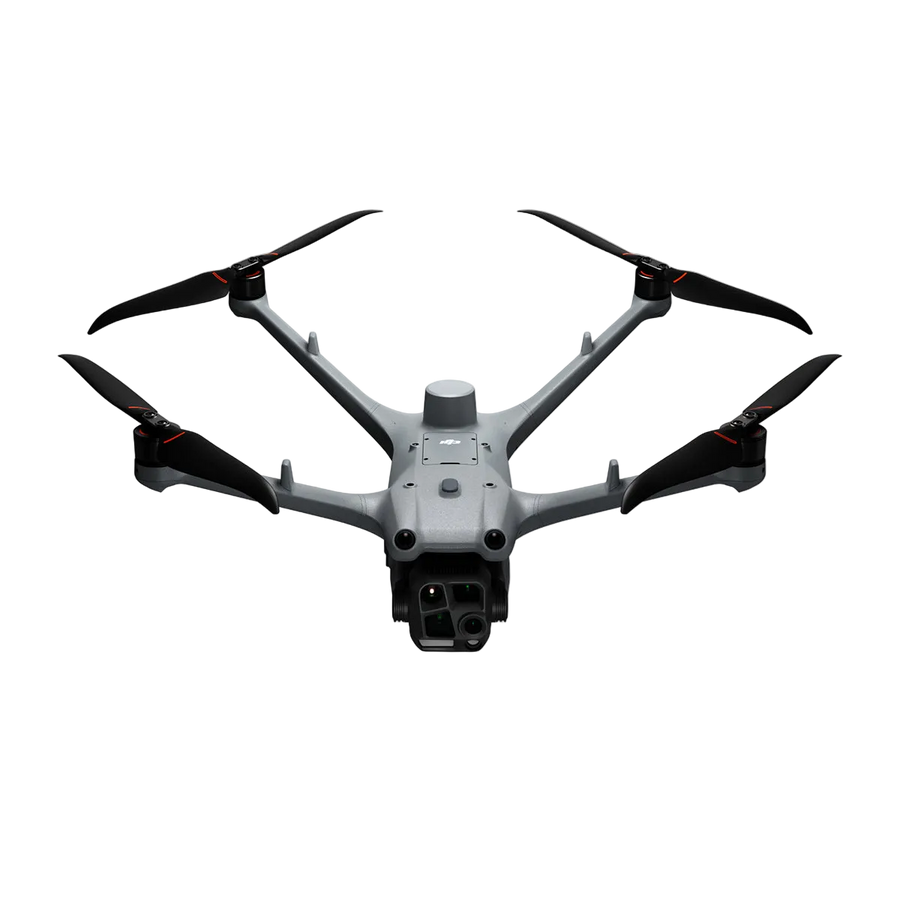

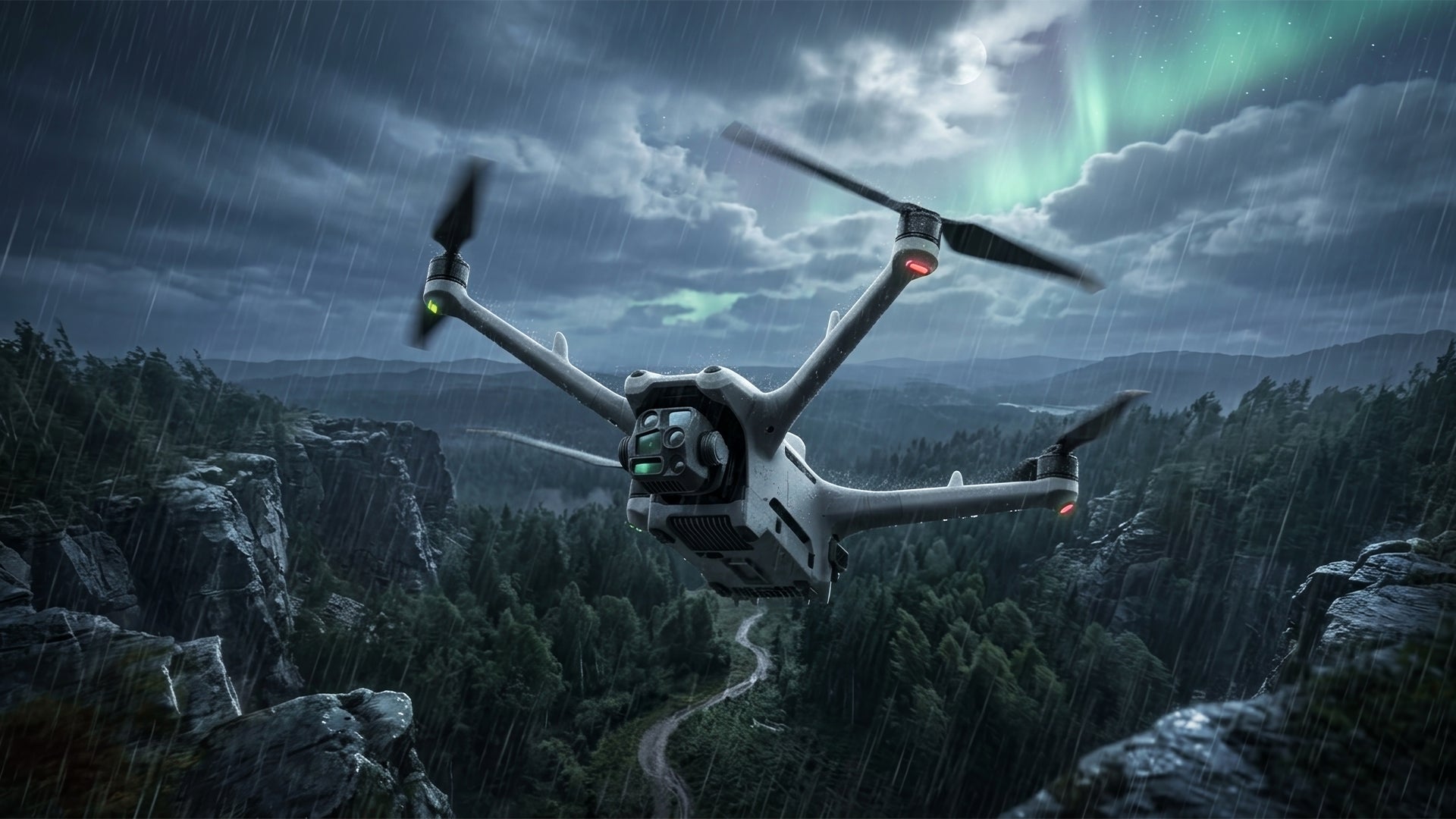

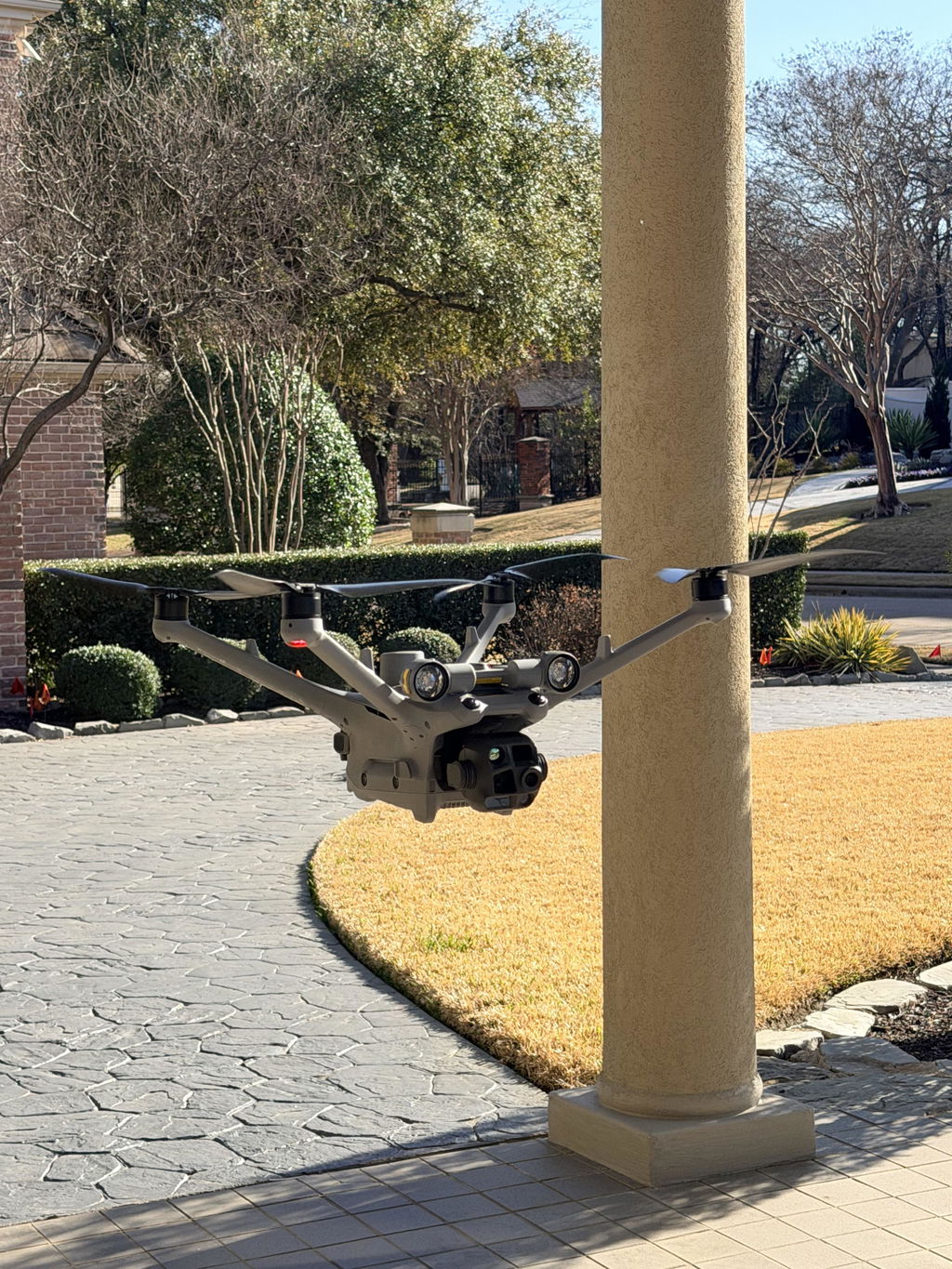

DJI Matrice 4TD

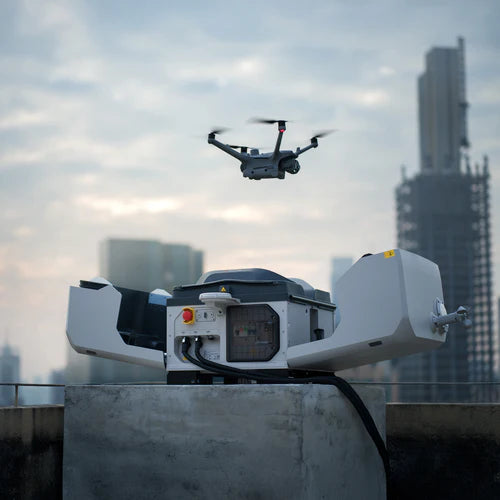

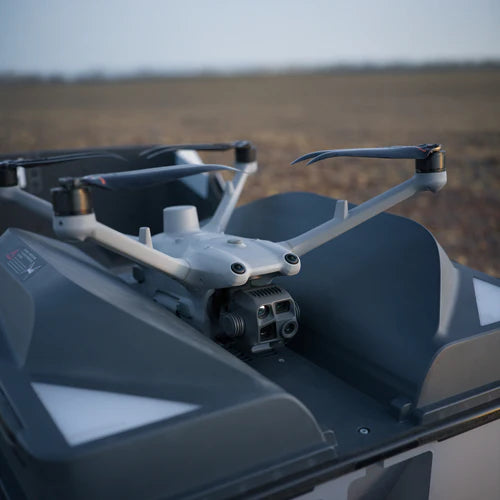

Advanced Thermal Drone for Dock 3 Operations

The DJI Matrice 4TD is a high-performance thermal drone engineered to work seamlessly with the DJI Dock 3. Equipped with a powerful infrared camera, precision telephoto lens, and intelligent flight features, it delivers automated, reliable missions even in the most demanding environments. With IP55 weather resistance and up to 54 minutes of flight time, the M4TD sets a new benchmark for thermal operations, inspections, and emergency response.

Key Specifications

• Weight: Approx. 1850 g (4.1 lbs)
• Max Takeoff Weight: 2090 g (4.6 lbs)
• Dimensions: 377.7 × 416.2 × 212.5 mm (14.8 × 16.4 × 8.3 in)
• Max Flight Time: 54 minutes
• Operating Temperature: -30°C to 50°C (-4°F to 122°F)
• Ingress Protection: IP55 (dust & water resistant)
• Transmission System: DJI O4+ Enterprise
• Max Transmission Distance: FCC: 25 km (15.5 mi) | CE: 12 km (7.45 mi)

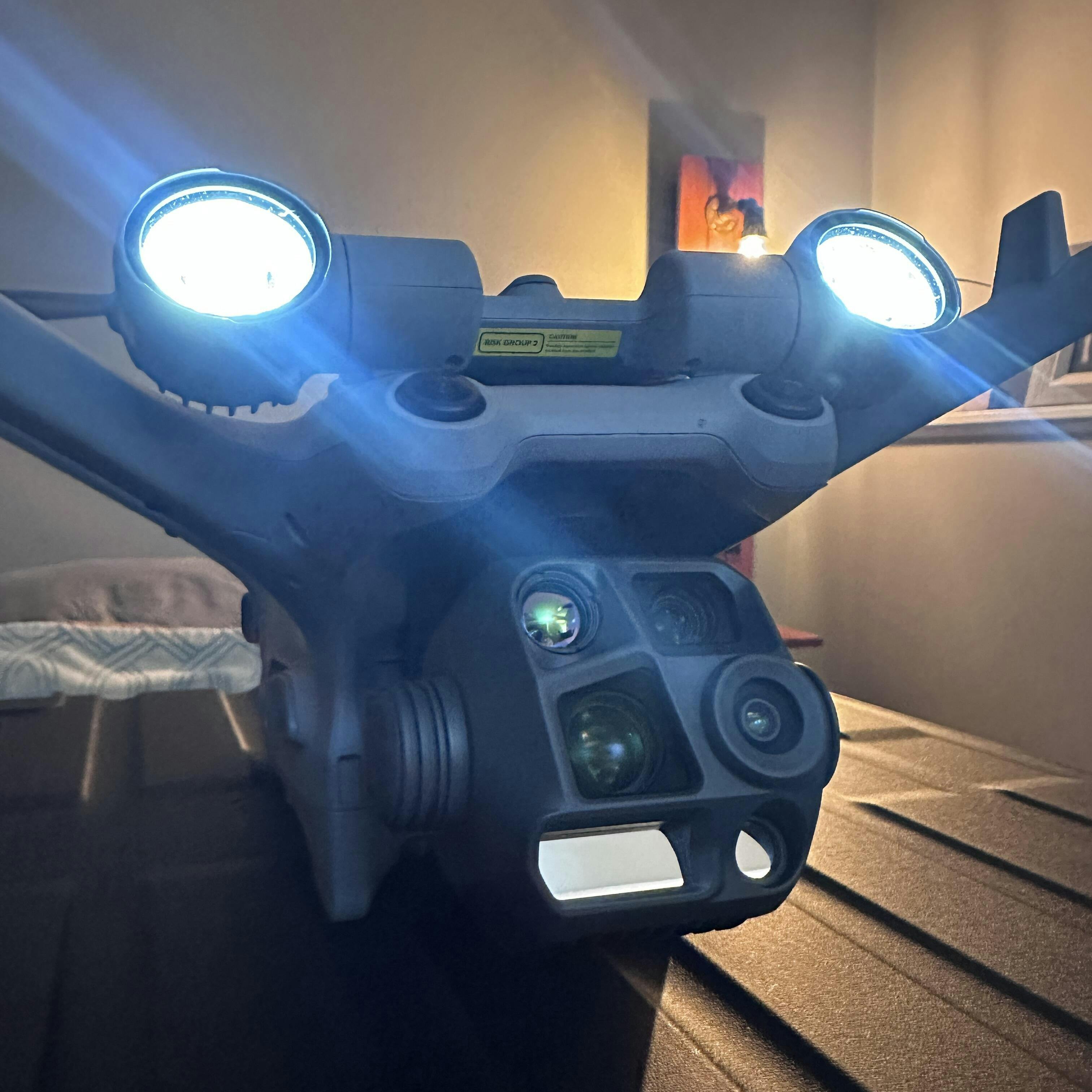

Imaging Payloads

• Thermal Camera
  • 640 × 512 resolution, f/1.0, ~53 mm equivalent
  • Infrared super-resolution up to 1280 × 1024
  • UHD Gain Mode support coming in future Dock 3 update
• Tele Camera
  • 1/1.5-inch CMOS, 48 MP
  • f/2.8, ~168 mm equivalent
  • 4× pixel count vs. M3D, 2× zoom improvement
• Mid-Tele Camera
  • 1/1.3-inch CMOS, 48 MP
  • f/2.8, ~70 mm equivalent
• Wide-Angle Camera
  • 1/1.3-inch CMOS, 48 MP
  • f/1.7, ~24 mm equivalent
• Laser Rangefinder
  • Range: ~1800 m (5905 ft)
  • Accuracy: 0.2 + 0.005 × D (m)
• NIR Auxiliary Light
  • 6° FOV, up to 100 m illumination range

Enhanced Flight Capabilities

• Extended Flight Duration
  • Dock 2: Up to 51 min
  • Dock 3: Up to 54 min
• Upward Inspection
  • 7× tele camera tilts up to 80° for bridge and overhead asset inspection
• Dynamic Terrain Following
  • Maintains safe, consistent altitude over variable landscapes

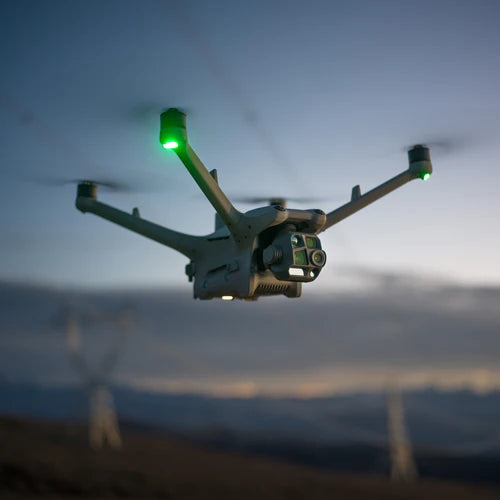

• Night Scene Mode
  • M4D & M4TD clarify visuals in low light
  • 7× tele lens offers black-and-white night scene for distant clarity

Intelligent Functions

• Onboard Relay – One drone can act as a signal relay for another, extending range in complex environments.
• Smart Detection – Identifies people, vehicles, and boats in real time, with automated FlightHub 2 alerts.
• Smart Track – Locks onto and follows moving targets automatically.
• Automated Routes – Detects and logs objects along preset waypoints.
• Change Detection – Compares new and historical imagery to highlight changes.
• Mouselook – Smooth gimbal navigation via mouse input for simplified control.
• Select & Zoom – Instantly zoom in on chosen objects for detailed analysis.

AI & Developer Tools

The M4TD supports custom AI detection models, powered by up to 10 TOPS onboard computing.

• Train detection models using DJI’s developer platform.
• Validate with real-world or simulated datasets.
• Deploy online or offline across assigned drone serials.

Data Security & FlightHub Integration

• FlightHub 2 Integration – Stream live data, receive detection alerts, and configure missions.
• Data Security – Backed by ISO-certified AWS servers in the US and EU.
• On-Premises Hosting – From Q2 2025, FlightHub 2 can run on dedicated servers for complete data control.

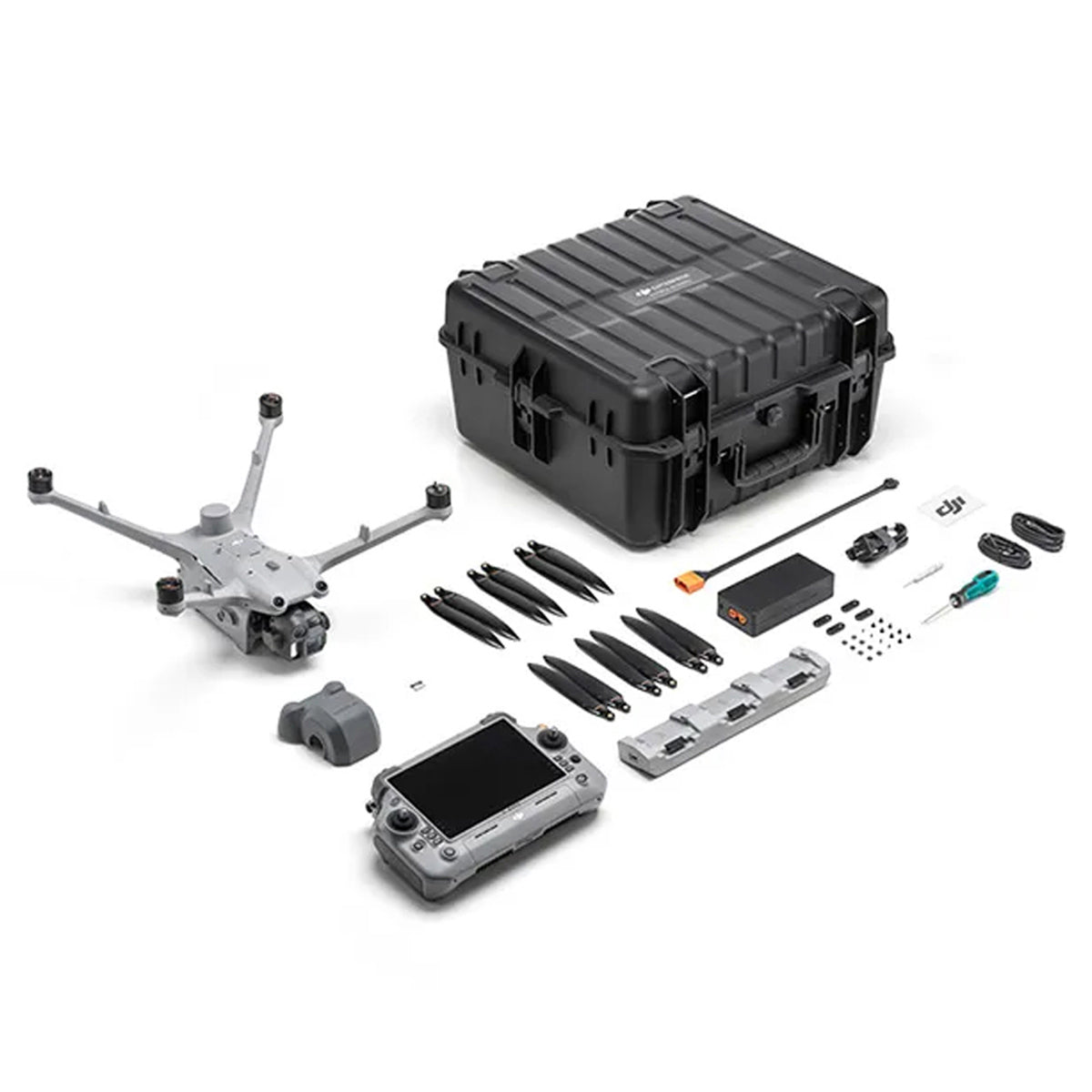

What’s Included (Independent Combo)

The Matrice 4TD can be purchased independently of Dock systems and comes with:

• DJI RC Plus 2 Enterprise Controller
• Charging Hub

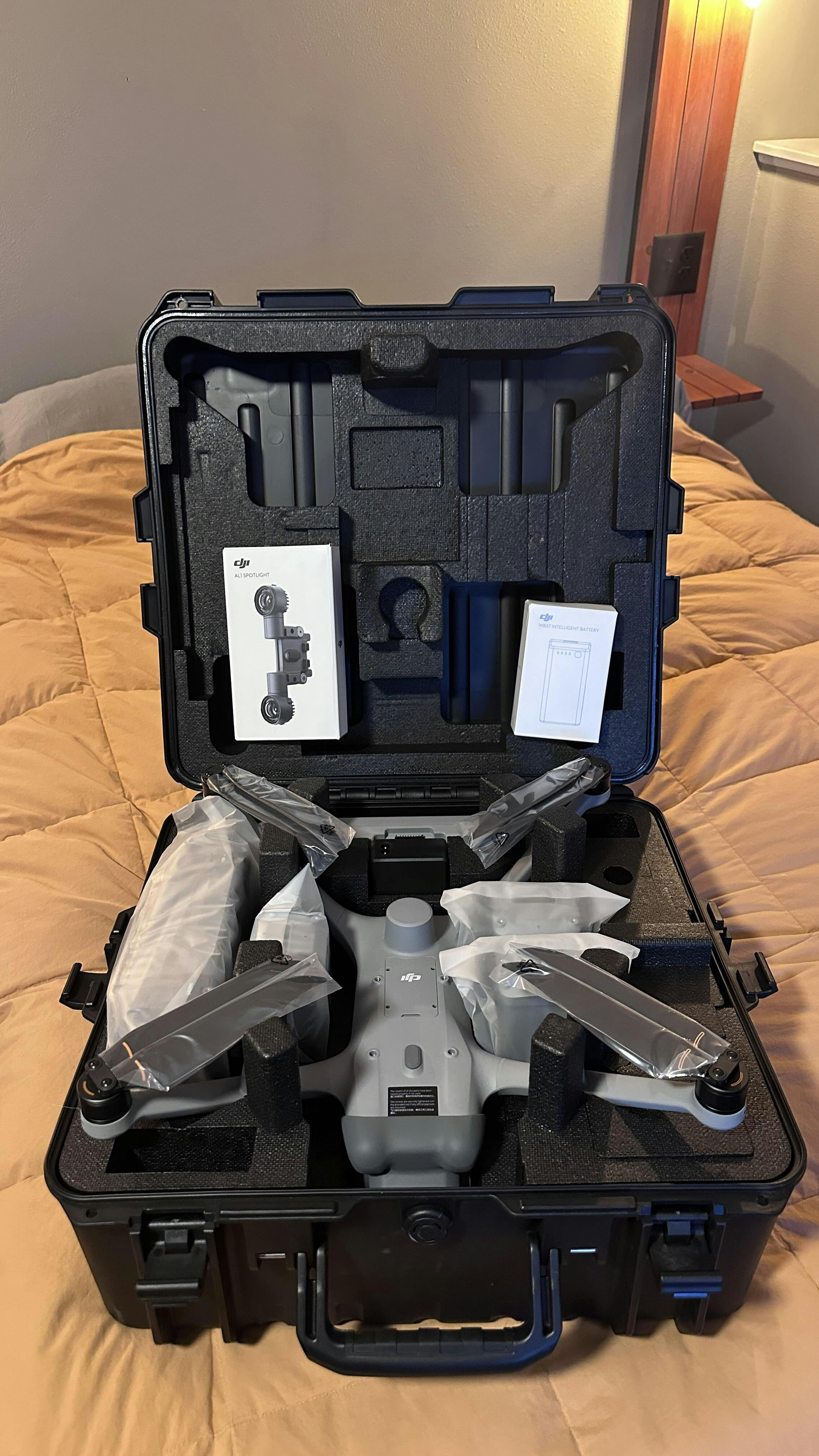

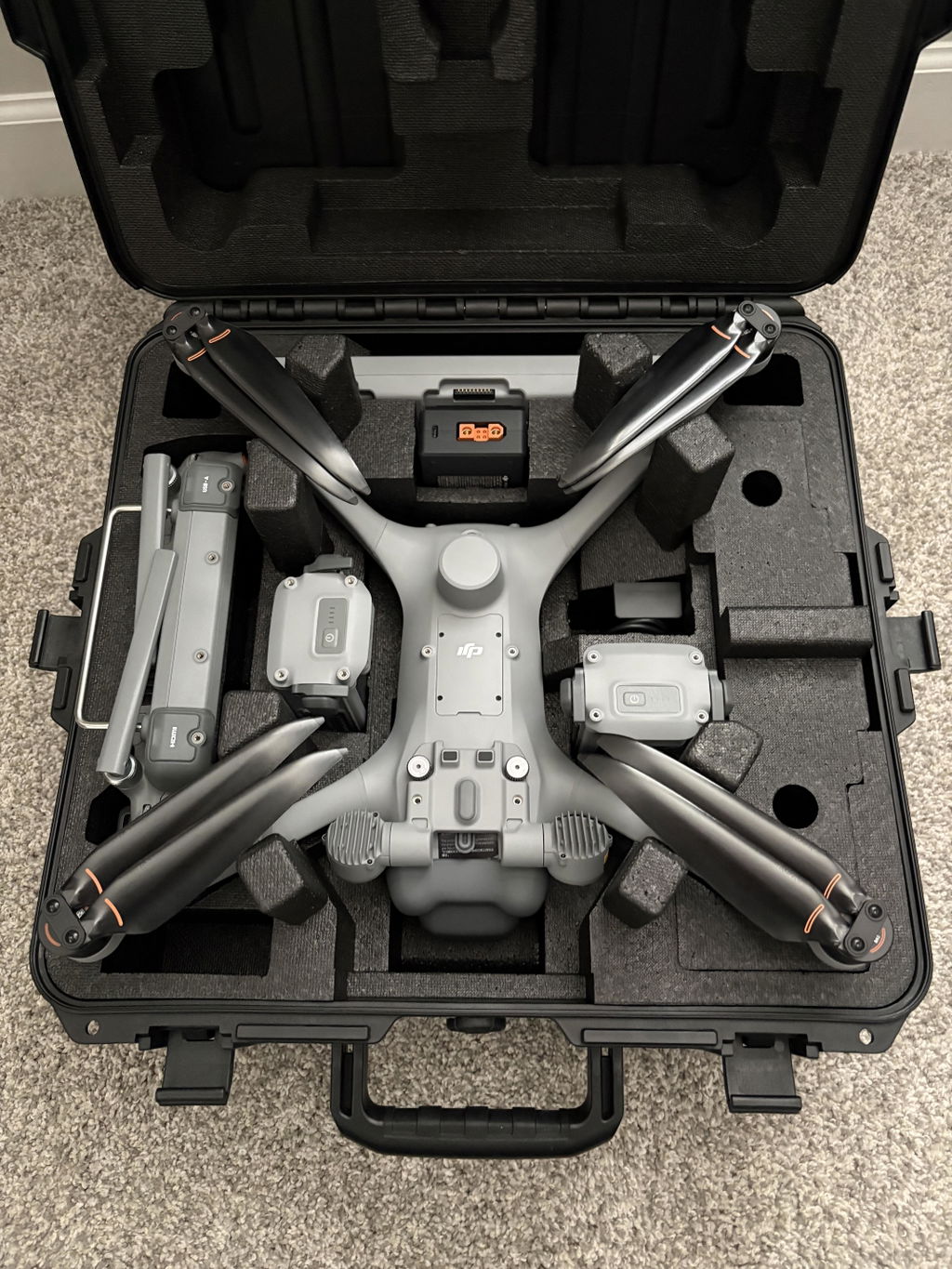

• Rugged Transport Case

Why Choose the Matrice 4TD?

With thermal imaging, extended endurance, and intelligent autonomy, the DJI Matrice 4TD is ideal for:

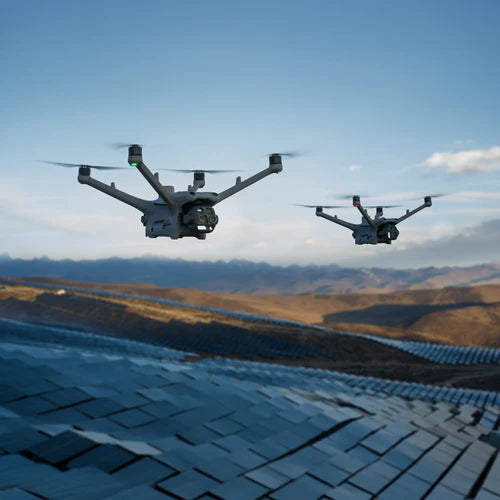

• Infrastructure inspections
• Public safety & emergency response
• Search & rescue
• Night operations & surveillance
• Long-duration automated missions with DJI Dock 3
